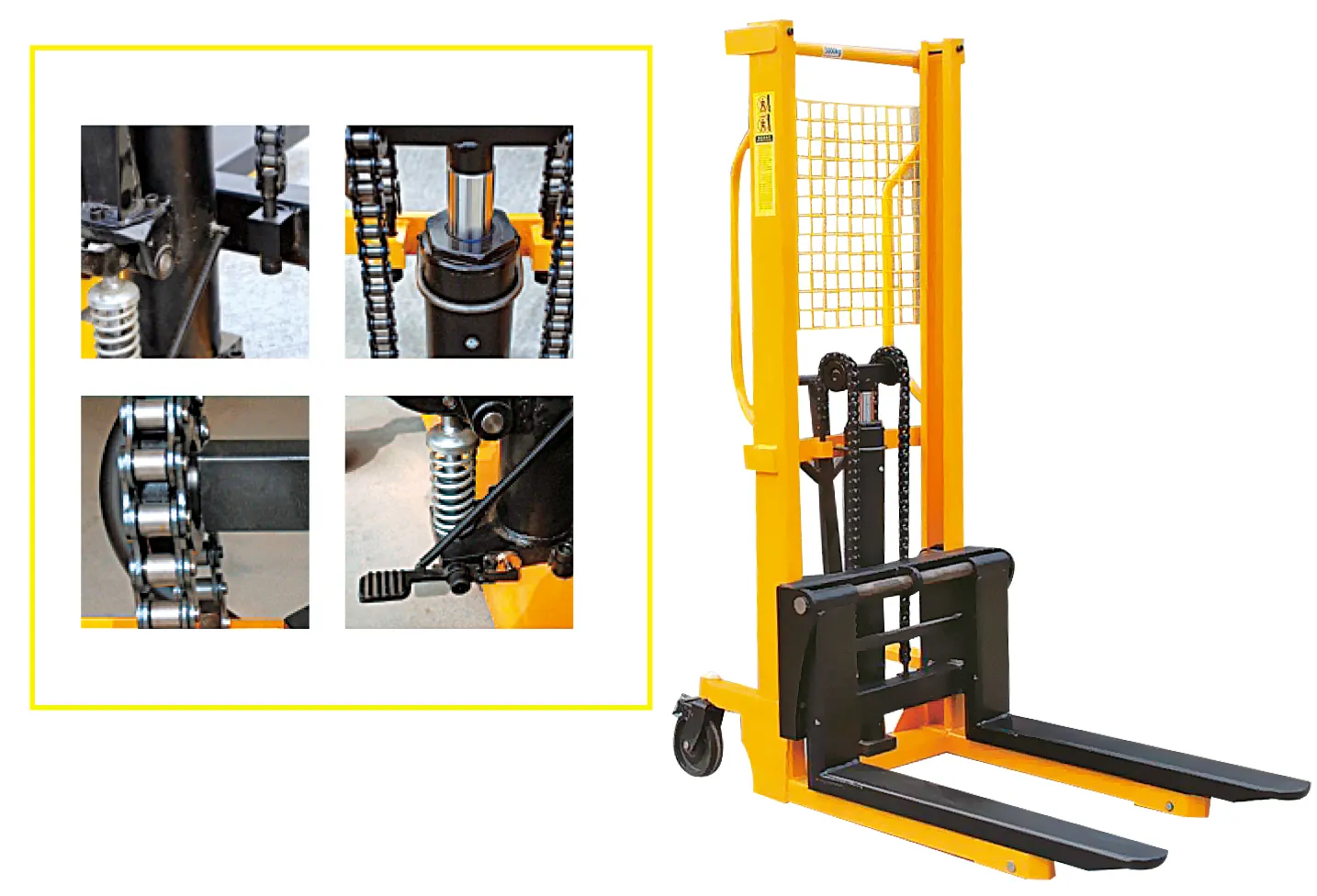

Introduction to the Manual Stacker (1000kg)
A Manual Stacker, often called a manual pallet stacker, is a hand-powered hydraulic lifting device designed to not only move palletized loads horizontally (like a standard pallet jack) but also to lift them vertically to place loads onto stacking frames, low shelves, or onto trucks. The 1000kg capacity indicates it is a robust, industrial-grade model built for heavy-duty applications.
It is the perfect intermediary tool between a simple hand pallet truck and a full-sized forklift, offering vertical lifting without the cost, size, or power requirements of a forklift.
Applications
The 1000kg capacity makes it ideal for a wide range of medium-to-heavy stacking tasks:
-
Warehouse Stacking: Loading and unloading low to medium-height shelving (typically up to 2-3 meters), racking, and stacking frames.
-
Loading Docks: Lifting pallets to place them onto or remove them from trucks and trailers.
-
Production & Staging Areas: Moving and organizing heavy materials, machinery parts, or finished goods in a factory environment.
-
Retail Stockrooms: Efficiently utilizing vertical storage space in backrooms without needing a large aisle for a forklift.
-
Any application where a pallet jack isn't enough (because you need to lift) and a forklift is too much (due to cost or space constraints).
The Principle of Operation
The operation combines the horizontal movement of a pallet jack with a hydraulic lifting mechanism for vertical travel.
-

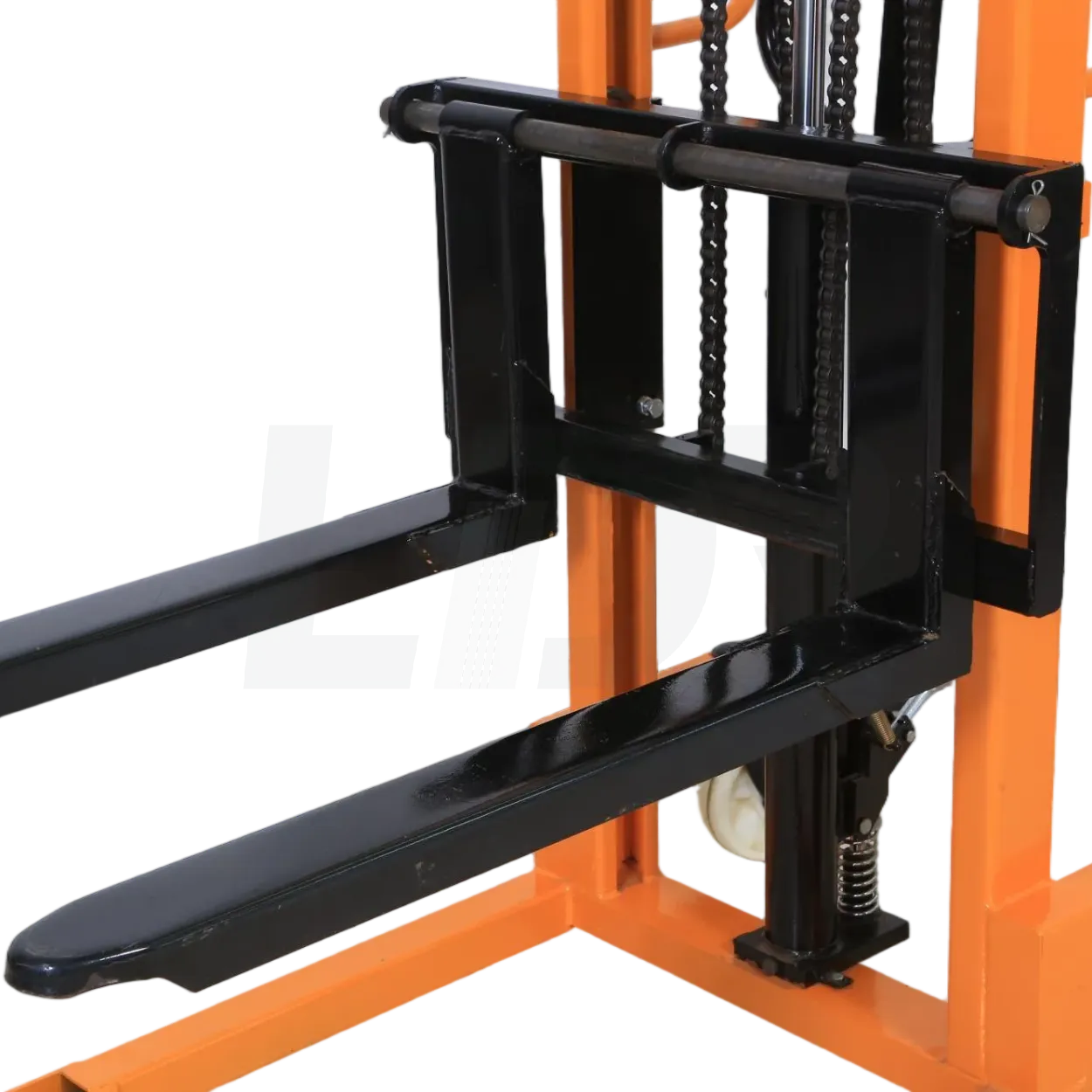

Positioning & Insertion: Lower the forks by releasing the hydraulic valve. Maneuver the stacker so its forks slide completely into the pallet openings.
-
Lifting the Load:
-

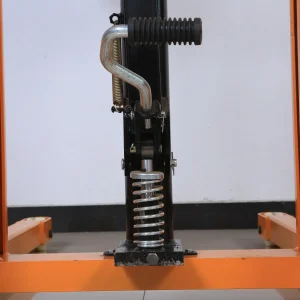

Pump the Handle: Use the hydraulic pump handle (often a separate lever or integrated into the main handle) to raise the forks and the load off the ground. A 1000kg model will require more pumping effort than a lighter-capacity stacker.
-
Raise to Desired Height: Continue pumping until the load is lifted to the required height for stacking or moving.
-
-
Transporting: Once lifted, the operator can pull or push the stacker to move the load to its new location. The large steer wheel and robust chassis make moving heavy loads manageable.
-
Stacking/Lowering:
-
Position the load precisely over the stacking point (shelf, another pallet, etc.).
-
Slowly turn the hydraulic release valve to lower the forks gently and place the load down.
-
-
Withdrawal: Once the load is securely placed and the forks are lowered, the stacker can be withdrawn from the pallet.
