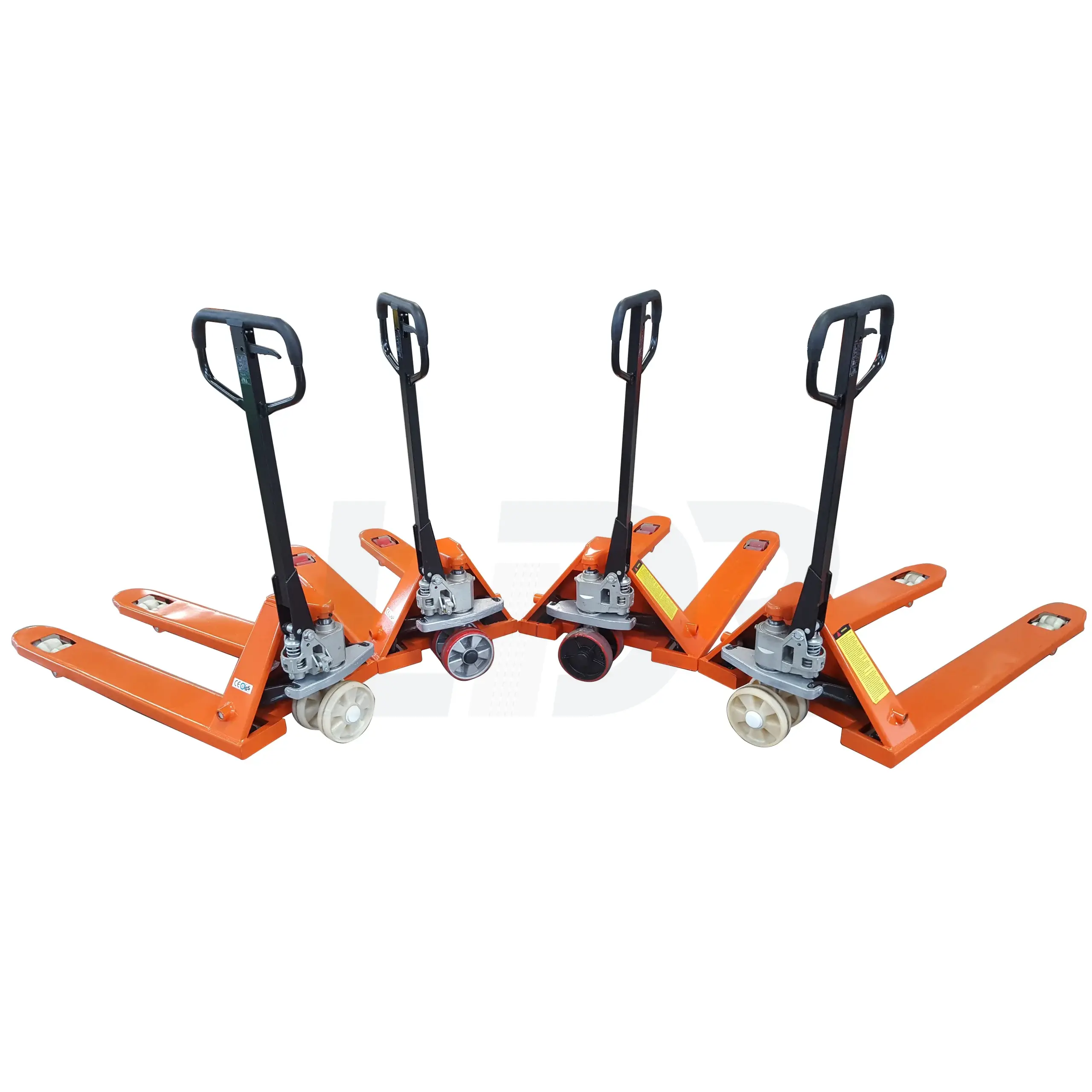

Hand Pallet Truck
The Hand Pallet Truck, also known as a manual pallet jack or hydraulic pallet truck, is one of the most widely used material handling tools in warehouses, factories and logistics centers.
Designed for efficient pallet transportation, the manual pallet truck allows operators to easily lift and move palletized goods over short distances. With a compact structure, ergonomic handle design and reliable hydraulic system, it ensures safe and smooth operation in daily warehouse tasks.
Our hand pallet trucks are manufactured with a reinforced steel frame and high-quality components, providing durability, stability and long service life even under heavy-duty working conditions.
This warehouse pallet truck is ideal for transporting goods in warehouses, supermarkets, manufacturing plants and logistics centers.
Working Principle of Hand Pallet Truck：
The hand pallet truck operates through a simple and reliable hydraulic lifting system. When the operator pumps the handle, the hydraulic pump raises the forks through a piston mechanism.
Once the forks are lifted to the desired height, the operator can easily move the palletized goods. When the handle control lever is released, the hydraulic system gradually lowers the forks.
This mechanical design allows the manual pallet truck to lift heavy loads with minimal effort while maintaining stability and safety.
Key Features of Hand Pallet Truck

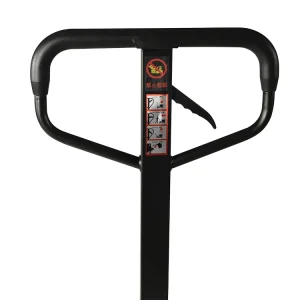

1.Ergonomic Handle Design：The ergonomic handle is designed according to human body engineering principles. It features a simple three-position control system:• lifting • neutral • lowering
This design makes the pallet truck easy and comfortable to operate.

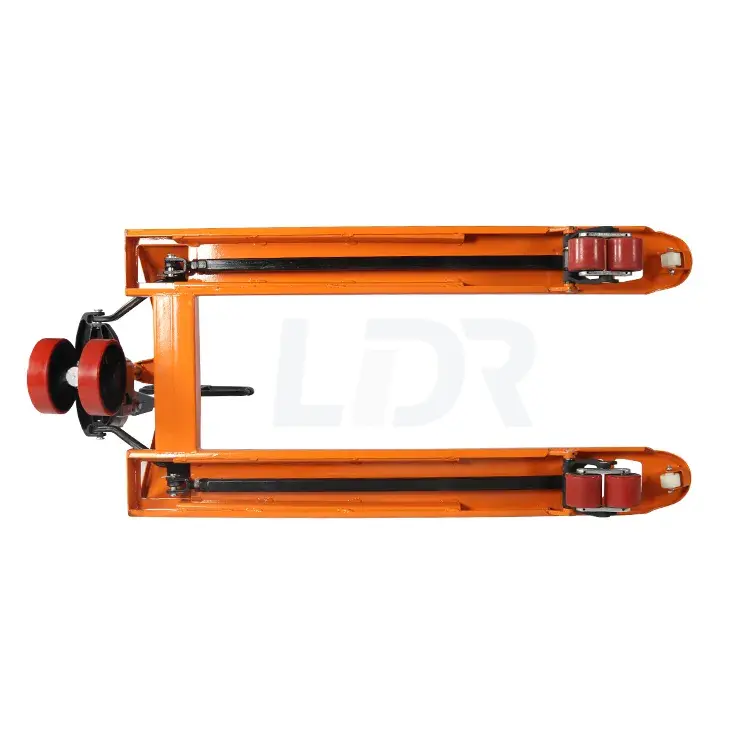

2.Reinforced and Balanced Frame：The highly balanced reinforced frame provides strong load-bearing capacity and improves stability during transportation.
3.Adjustable Fork Lowering Height：The push rod under the fork can be manually adjusted, allowing the operator to control the lower height of the fork according to different working conditions.
4.Training Wheels for Slope Stability：All models are equipped with training wheels, which improve stability and safety when transporting goods on slopes or uneven surfaces.

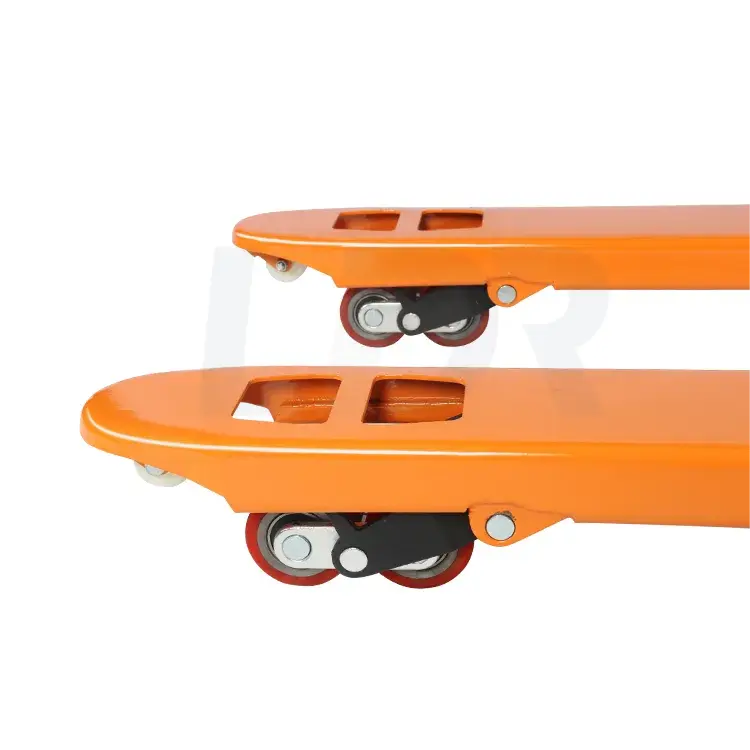

5.Durable Bearing Wheels：The bearing wheels adopt double wheel design, improving load distribution and ensuring smoother movement when carrying heavy loads.

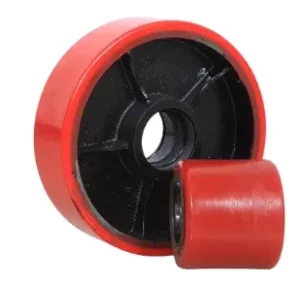

6.Wheel Options for Different Floor Conditions：The manual pallet truck offers different wheel materials depending on the working environment.
Technical Specifications:
Typical specifications for the hand pallet truck include:
Product Details:
How to Choose the Right Hand Pallet Truck？
Selecting the right pallet truck depends on several important factors such as load capacity, fork size, wheel type, and working environment. Choosing the correct model can improve efficiency, safety, and equipment lifespan.
1. Load Capacity
The first factor to consider is the maximum load capacity required for your daily operations.
Manual pallet trucks are commonly available in capacities such as:
-
2 Ton (2000 kg) 2.5 Ton (2500 kg) 3 Ton (3000 kg) 5 Ton (5000 kg)
For most warehouse and logistics applications, a 2.5T pallet truck is the most widely used option.
2. Fork Size
Fork dimensions should match the size of your pallets. The most common fork widths are:
| Fork Width | Suitable Pallet Type |
|---|---|
| 550 mm | Standard pallets and narrow pallet spaces |
| 685 mm | Wider pallets and heavier loads |
Choosing the correct fork width ensures stable lifting and smooth pallet handling.
3. Working Environment
The operating environment also plays an important role when selecting a pallet truck.
Consider the following factors:
-
Warehouse aisle width
-
Floor condition
-
Load weight and frequency of use
-
Indoor or outdoor operations
For narrow aisles or confined spaces, a compact manual pallet truck is usually the best choice.
4. Durability and Build Quality
A high-quality pallet truck should feature:
-
reinforced steel frame
-
reliable hydraulic pump
-
wear-resistant wheels
-
ergonomic handle design
These features ensure long service life and stable performance even in demanding industrial environments.
5. Special Requirements
Some applications may require specialized pallet trucks, such as:
-
Low profile pallet trucks for low pallets
-
Stainless steel pallet trucks for food or pharmaceutical industries
-
Weighing pallet trucks with built-in scales
Choosing the right type ensures the equipment meets specific operational needs.
Quick Selection Guide
| Requirement | Recommended Option |
|---|---|
| Standard warehouse use | 2.5T manual pallet truck |
| Narrow pallet spaces | 550mm fork width |
| Smooth indoor floors | Polyurethane wheels |

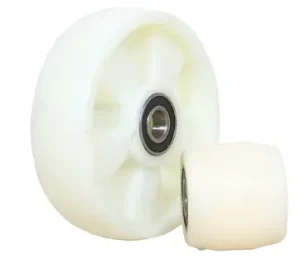

| Rough industrial floors | Nylon wheels |
| Heavy-duty applications | Steel wheels |
FAQ – Hand Pallet Truck
- What is a hand pallet truck used for?
A hand pallet truck is used to lift and transport palletized goods over short distances in warehouses, factories and logistics centers.
- What is the difference between a pallet truck and a forklift?
A pallet truck is a manual handling tool used for short-distance pallet transport, while a forklift is a powered vehicle designed for lifting and stacking goods at higher levels.
- What capacity pallet trucks are available?
Manual pallet trucks are commonly available in capacities ranging from 2000 kg to 5000 kg.
