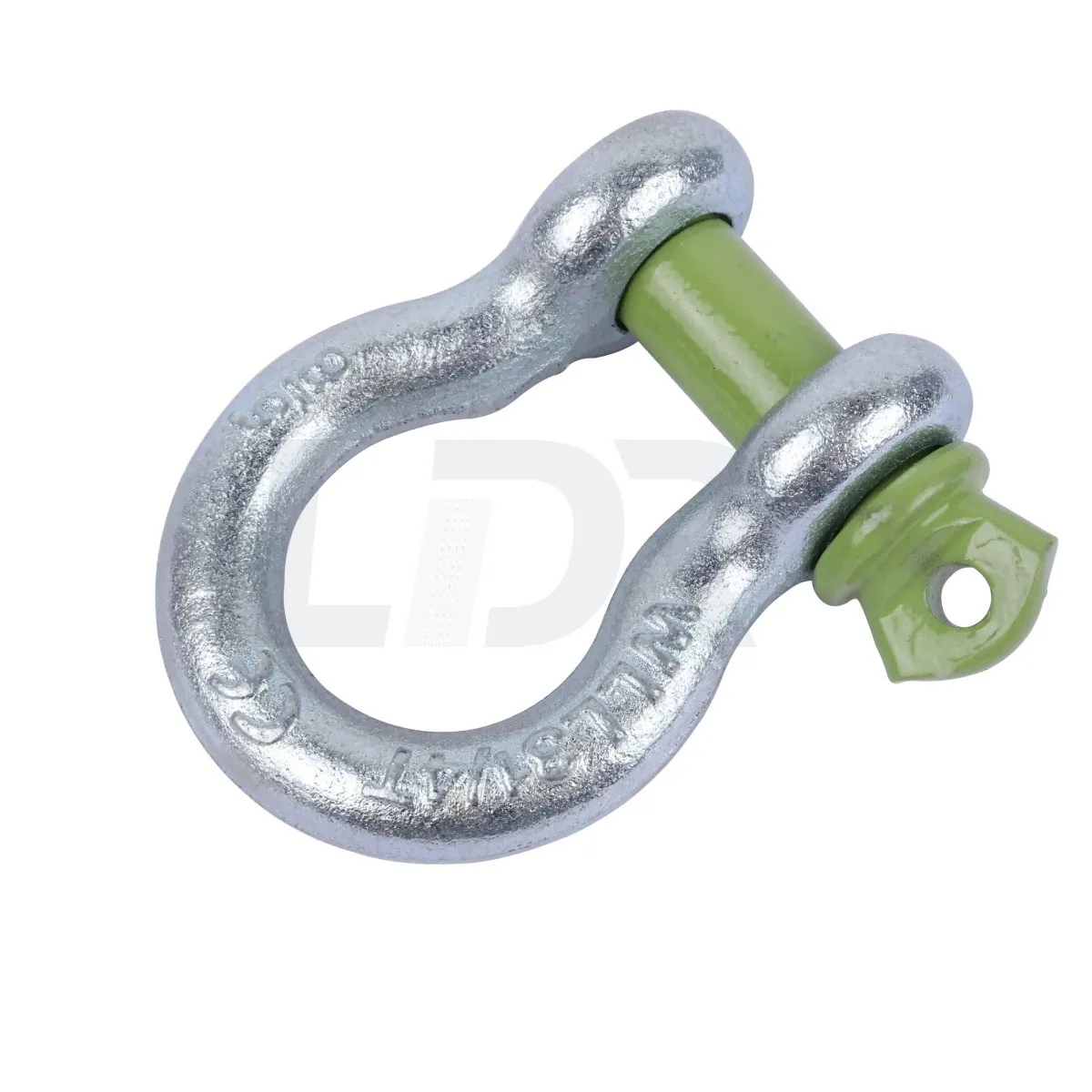

US Type Drop Forged G-209 Screw Pin Bow Shackle

1. Model: Drop forged anchor shackle Safety factor 4:1,6:1 ,testing load 2.5times

2.Material: Alloy Steel

3. Usages: Marine hardware, electric power, machinery, metallurgy, building

4.Surface Treatment: Electric galvanized, hot dipped galv, painted.

5.Size: from 1/4inch to 3 inch.

6.Packing: Gunny bag or carton and pallet

7. Our advantages: quality assurance, experienced staff, professional service, competitive price.

Follow by Email
Facebook
X (Twitter)
LinkedIn
Share
WhatsApp

Product Detail

Key Features & Benefits

  1. Superior Strength & Load Capacity

    • Forged from high-grade alloy steel or stainless steel, our shackles undergo rigorous heat treatment for exceptional tensile strength and impact resistance.

    • Working Load Limits (WLL) range from 0.5 to 100 tons, with clear markings for safe use.

  2. Safety Compliance

    • Certified to meet international standards (ASME B30.26, DIN, EN, ISO).

    • Each shackle is proof-tested and individually inspected to ensure reliability under load.

  3. Corrosion Resistance

    • Hot-dip galvanized or polished stainless steel finishes provide long-lasting protection against rust, abrasion, and harsh conditions.

  4. Versatility

    • Compatible with wire ropes, chains, slings, and synthetic straps.

    • Wide size range (¼" to 1½") for light-duty to heavy-industrial applications.

  5. Ease of Use

    • Precision-machined pins for smooth engagement and removal, reducing setup time.

    • Designed with rounded edges to prevent damage to connected equipment.

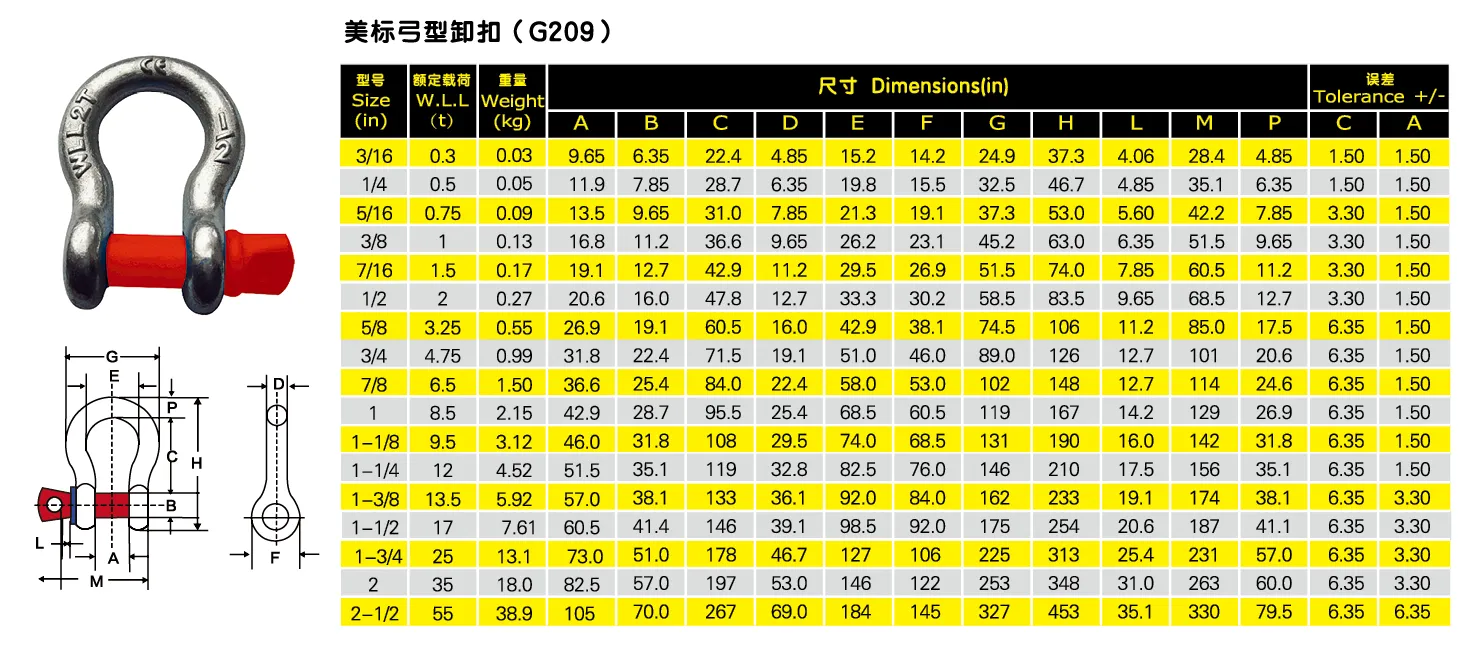

Specification
