High-Performance Cargo Securement Solution
Ratchet tie down is an essential component used during transporting, moving, loading, and warehousing. It is engineered to keep goods stable and securely fixed while they are being transported by truck, train, and ship.
This manual tensioning system is highly efficient and easy to apply; the maximum force required to handle it by hand is only 500N. Once the ratchet mechanism is locked, it will not loosen, ensuring flexible handling and maximum safety for any cargo load.

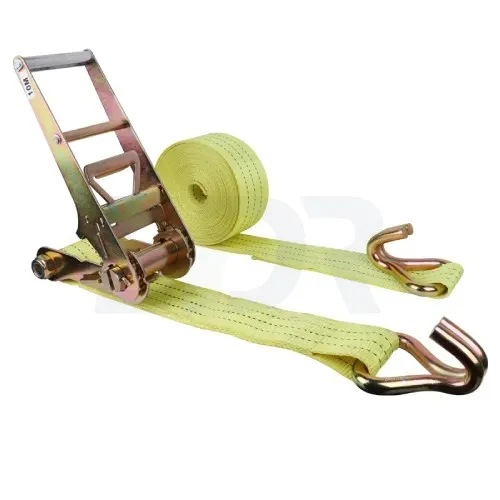

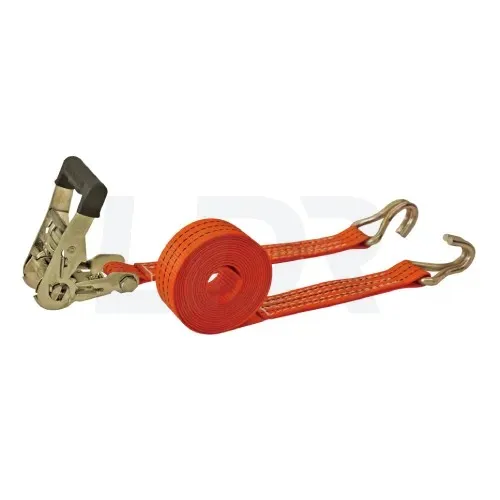

Our premium 2 inch ratchet strap with j hooks is designed for safe and secure cargo transportation across trucks, trailers, flatbeds, and containers. Built using high-tenacity polyester webbing and robust steel ratchet gear mechanisms, these heavy-duty double j hook ratchet straps ensure optimal tension retention, maximum breaking strength, and an extended service life—making them the absolute benchmark for logistics companies, construction contractors, equipment transporters, and wholesale distributors worldwide.

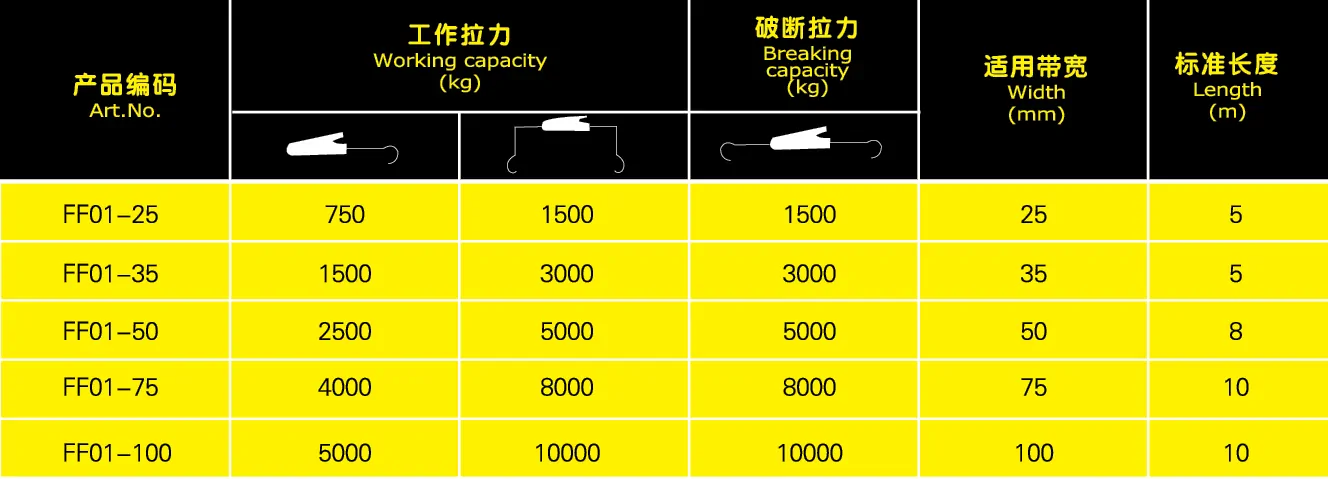

Specification

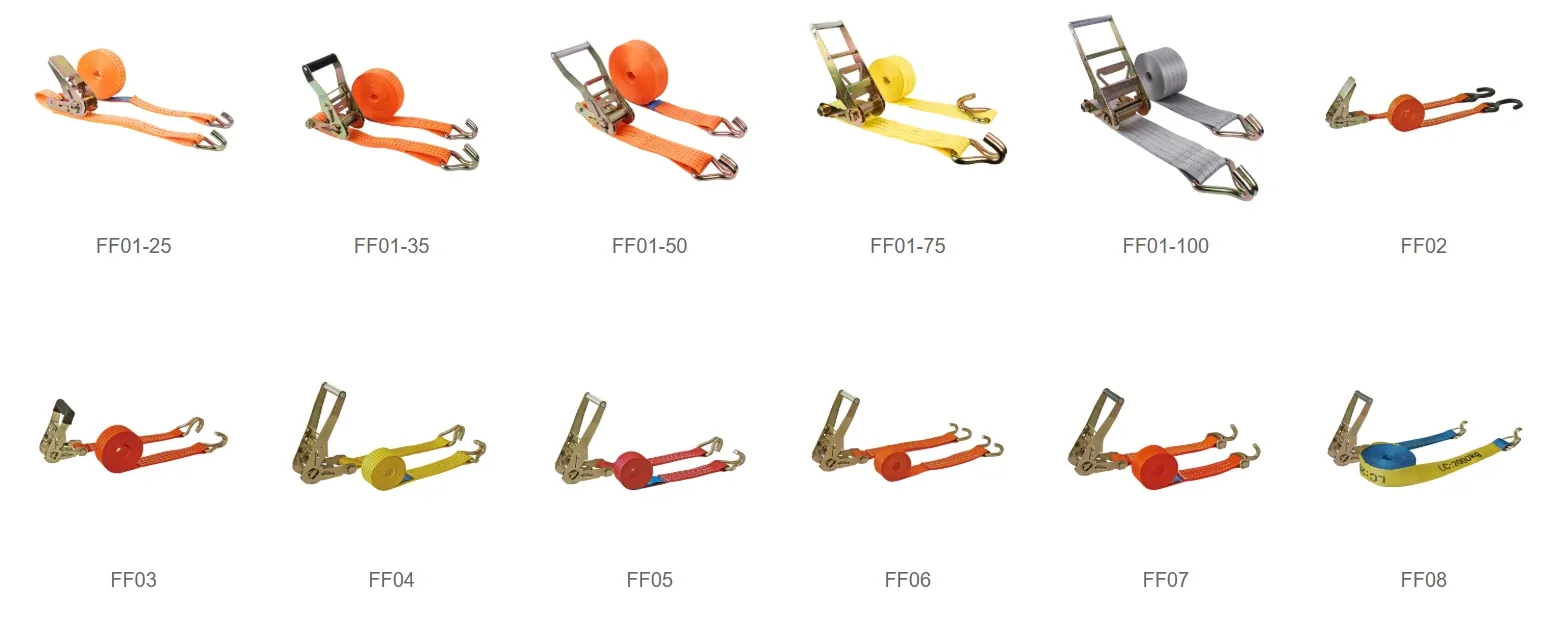

| Art. No. | Working Capacity (Single Line) (kg) | Working Capacity (Double Line) (kg) | Breaking Capacity (kg) | Width (mm) | Length (m) |
| FF01-25 | 750 | 1,500 | 1,500 | 25 | 5 |
| FF01-35 | 1,500 | 3,000 | 3,000 | 35 | 5 |
| FF01-50 | 2,500 | 5,000 | 5,000 | 50 | 8 |
| FF01-75 | 4,000 | 8,000 | 8,000 | 75 | 10 |
| FF01-100 | 5,000 | 10,000 | 10,000 | 100 | 10 |

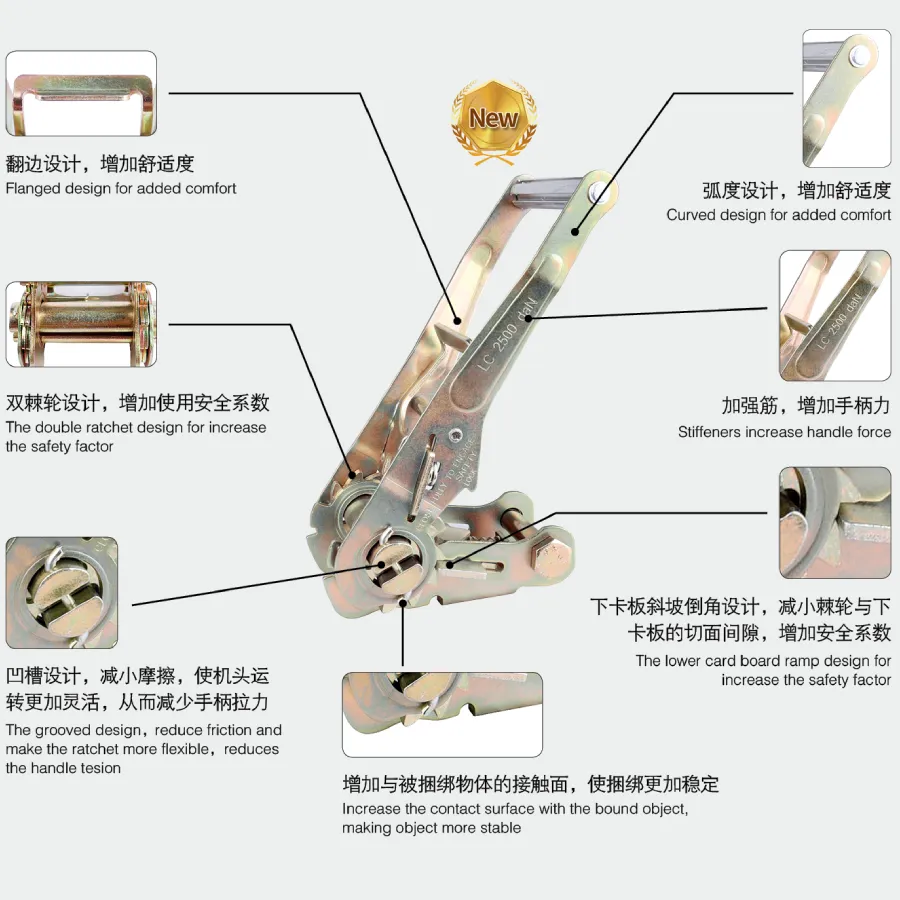

Advanced Engineering & Structural Features
Our upgraded heavy-duty ratchet handle mechanism (Model LC 2500 daN) incorporates several innovative structural improvements designed to optimize strength, ease of use, and overall safety:
-
Flanged Handle Design: The upper lever features flanged metal edges, significantly increasing ergonomics, hand comfort, and grip stability during manual tensioning.
-
Curved Lever Profile: A smooth, curved body profile contour reduces mechanical stress focal points and offers a more natural grip for seamless leverage.
-
Integrated Stiffeners (Reinforcement Ribs): The structural steel handle beams are stamped with deep-embossed reinforcement ribs (stiffeners) to vastly increase handle force capability and prevent bending under heavy strain.
-
Double Ratchet Wheel Design: Features synchronized double-pawl gears on both sides of the main spindle. This double ratchet structure distributes stress evenly and vastly increases the overall safety factor.
-
Grooved Spindle Center: The central winding shaft utilizes an advanced grooved design. This reduces internal component friction, making the ratchet action more flexible and lowering manual handle tension requirements.
-
Lower Card Board Ramp Design: The lower retaining base plate utilizes a precision ramped, chamfered corner architecture. This minimizes the cutting clearance gap between the ratchet wheel and the locking plate, enhancing precise engagement and further upgrading the mechanism's safety factor.
Key Features & Utility Options
-
Multi-Purpose Vehicle Recovery & Towing: Provides the simplest, most reliable way to tow damaged, stuck, or disabled cars and jeeps. The zinc-plated flat hook and double j hook ratchet tie down end-fittings attach to vehicle chassis anchor points effortlessly. It is significantly lighter and more convenient to store in trunks than heavy wire ropes or chains, remaining entirely free from rust, mildew, and rot.
-
All-Weather Recovery Operations: Heavy-duty, high-flexibility straps can link freely to help pull vehicles sunk deep in mud, sand, or winter snowbanks.
-

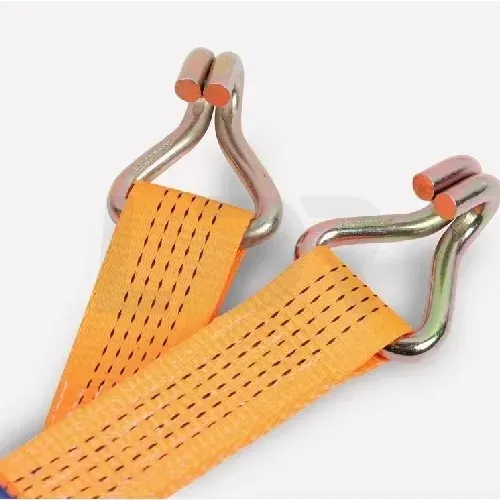

Symmetrical Dual Hook Structure: Standard configuration features two strong hooks on each side of the towing/lashing assembly for intuitive attachment to standard vehicle anchor spots and D-rings.
-
Extensive Length & Temperature Ranges: The standard production length is 8m, but it can be freely modified from 1m up to 50m. Full performance rating is sustained across an extreme temperature spectrum of -40°C to +100°C.
-
Premium Surface Finishes: Under normal circumstances, the hardware surface plates are finished with a protective gold or silver zinc plating. If your application demands alternative colors or thick PVC protective coatings, please specify when placing your order. Stainless steel ratchets and hooks are also fully available for marine environments.
-
Massive Hardware Ecosystem: LDR currently manufactures more than 300 types of specialized hardware accessories. We provide full OEM/ODM processing based directly on your custom diagram papers, blueprints, or physical samples.
Critical Safety Precautions & Operational Guidelines
-
Only use ratchet straps tie downs that are completely free of damage. Ensure the capacity label is fully legible before loading.
-
Do not tie knots in the webbing strap under any circumstances.
-
Always use a protective sleeve or corner pads to shield the fabric strap from sharp angles, avoiding premature wear or severe incisions.
-
Avoid physical distortion, twisting, or wringing of the ratchet straps during setup.
-
Do not place external objects on top of tensioned ratchet straps, as this can destabilize the load layout and cause structural failure or personal injury.
-
Ensure the bottom flat plate sits completely flush to increase the contact surface area with the bound object, making the entire cargo structure significantly more stable.
Complete Hardware & Accessories Series
| Component Category | Model Series & Industry Codes (As Pictured) | Standard Finish & Capabilities |

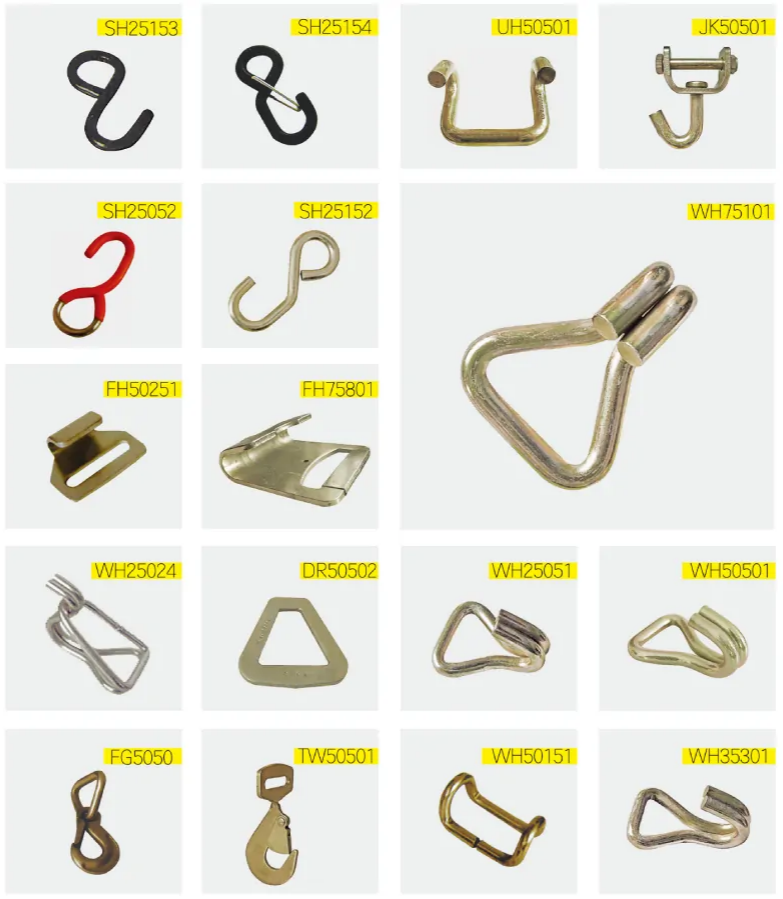

| End Fitting Hooks & Rings | SH25153, SH25154 (S-Hooks), UH50501, JK50501 (Swivel Hooks), SH25052, SH25152, WH75101, FH50251, FH75801 (Flat Hooks), WH25024, DR50502 (Delta Rings), WH25051, WH50501, FG5050, TW50501 (Snap Hooks), WH50151, WH35301 | Bright Zinc Plating, Optional Custom Color PVC Coating, Stainless Steel Options Available. Over 300+ molds ready for custom blueprint manufacturing. |

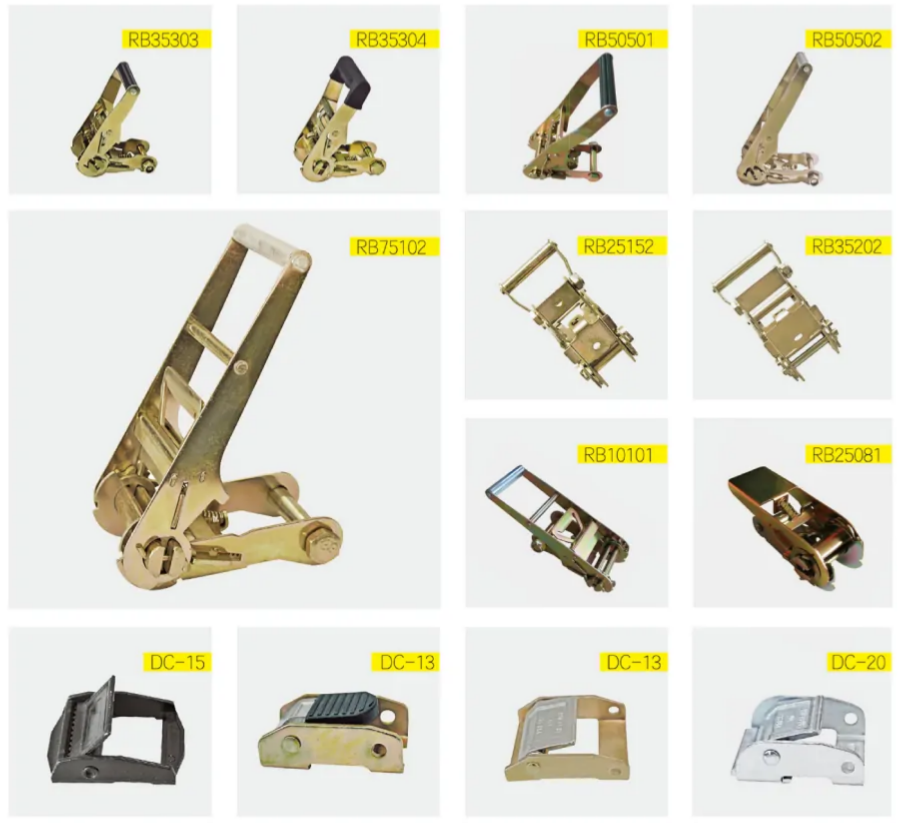

| Heavy-Duty Ratchet Buckles | RB35303, RB35304, RB50501, RB50502, RB75102 (Heavy Duty 3"), RB25152, RB35202, RB10101, RB25081 | Double-pawl design, LC 2500 daN rated options, grooved spindle friction reduction, customized handle layouts (plastic/steel grips). |
| Cam & Overcenter Buckles | DC-15, DC-13 (Rubber pad variants), DC-20 | Lightweight fast lashing, high-grade die-cast or stamped steel construction, tailored for quick securement. |

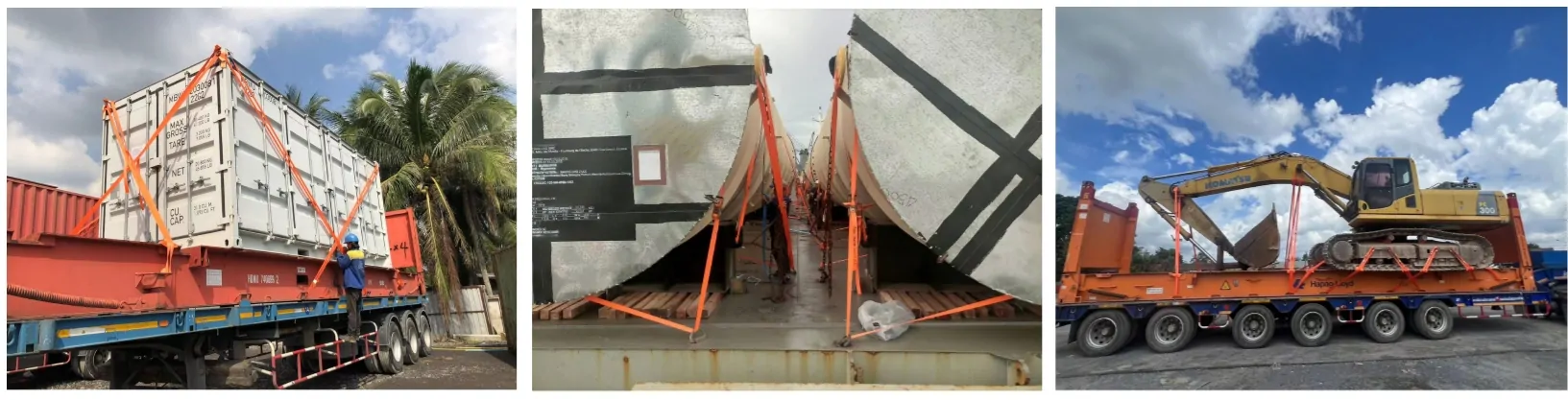

Industrial Applications & Comprehensive Use Cases
LDR's heavy-duty double j hook ratchet tie down systems are engineered for versatility across demanding commercial and residential operations. Below are the key field application scenarios where our cargo control straps excel:
-

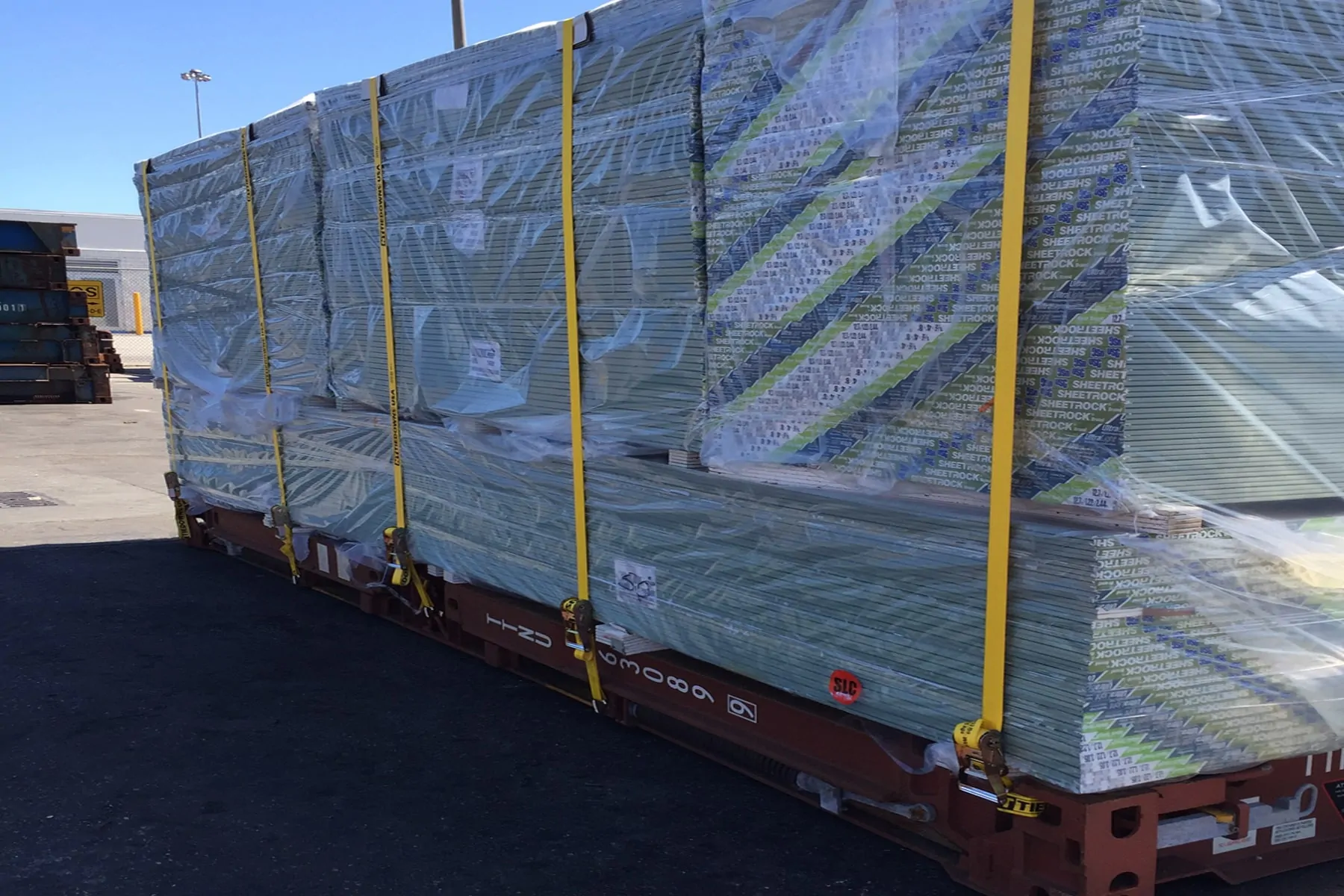

Commercial Trucking & Flatbed Hauling: Ideal for professional freight carriers and logistics operators securing building materials, steel coils, lumber pallets, and bulk packaging industrial loads on flatbed trailers, enclosed dry vans, and step-decks. The heavy-duty double J-hook anchor fittings drop directly into trailer side rails, stake pockets, or standard D-rings.
-
Automotive Transport & Emergency Recovery: Widely relied upon for flatbed car haulers, recovery wreckers, and off-road self-rescue missions. This strap provides the simplest, safest way to tow damaged, stuck, or disabled cars, jeeps, or side-by-sides. Sunk deep in mud, sand, or winter snow? These flexible straps link freely to anchor points to assist in rapid vehicle recovery. They are much lighter, safer to handle, and more compact to store in trunks than heavy wire ropes or chains, remaining entirely free from rust, mildew, and rot.
-

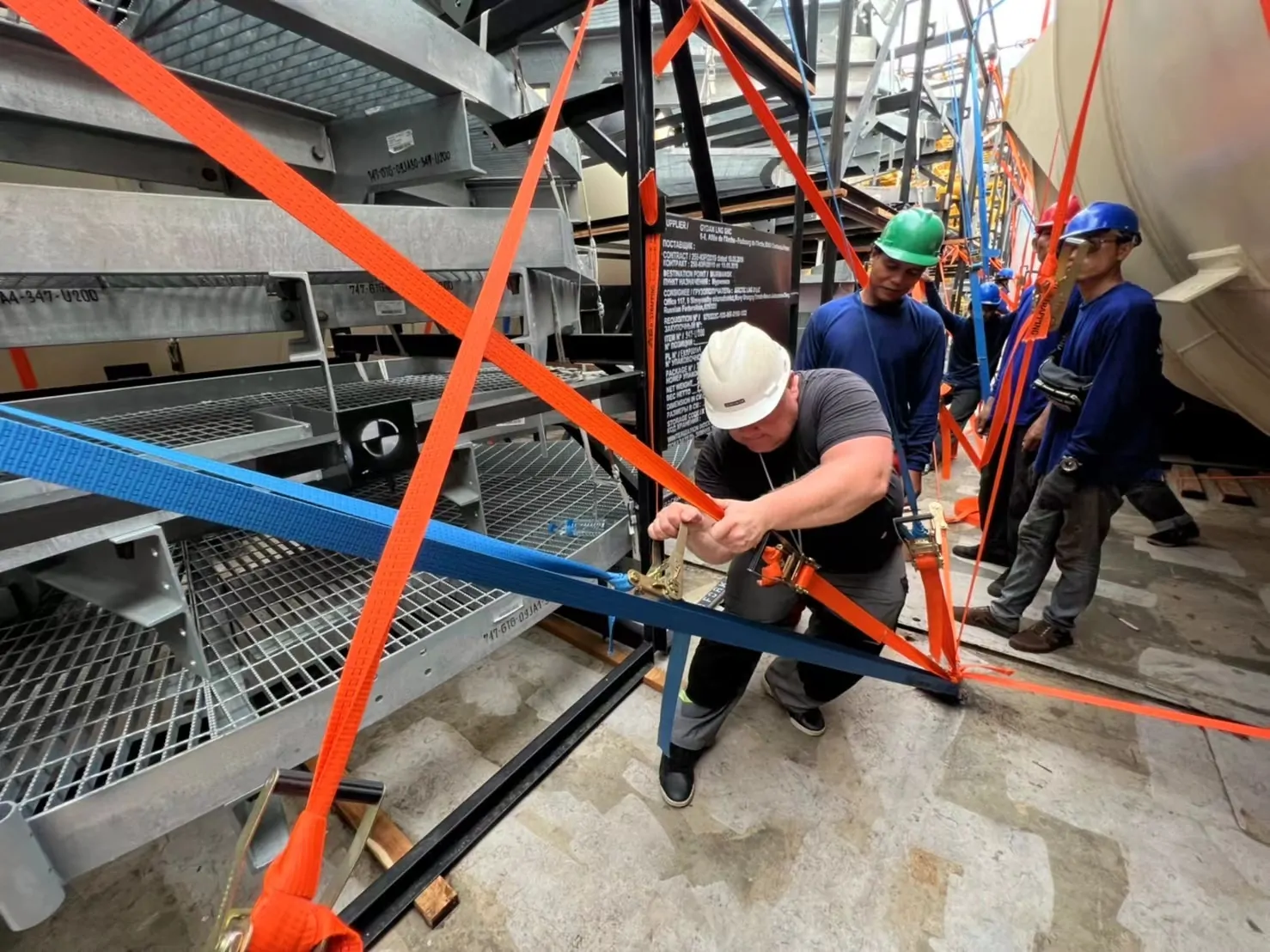

Construction & Industrial Equipment Transit: Perfect for general construction contractors moving heavy equipment, machinery, compressors, generators, and scaffolding between job sites. The robust tensioning system minimizes shifting caused by road vibrations or sudden braking.
-
Intermodal Rail & Maritime Warehousing: Engineered to withstand the extreme gravitational shifts encountered in international shipping. LDR lashing belts secure heavy freight inside containers, on open rail cars, and in ship cargo holds for long-distance oceanic warehousing, preventing catastrophic shifting during transit.
-
Agricultural & Utility Trailer Hauling: Tailored for farmers, landscapers, and residential homeowners securing bulk hay bales, farm implements, ATVs, UTVs, small tractors, or heavy landscaping equipment onto low-riding utility trailers.
Product Application & Customized Packaging
LDR Ratchet Tie Downs are universally relied upon across the global cargo logistics sector. They are widely applied in professional lashing, tying, vehicle transport securing, and even vehicle self-rescue operations for trailers or off-road vehicles.

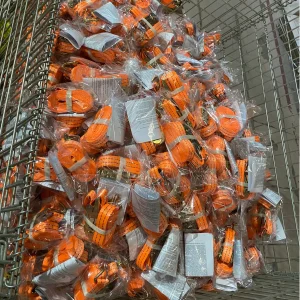

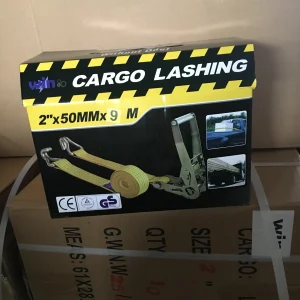

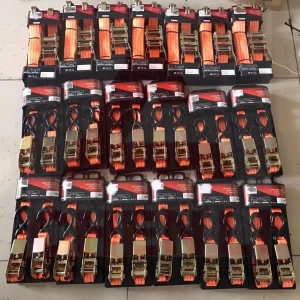

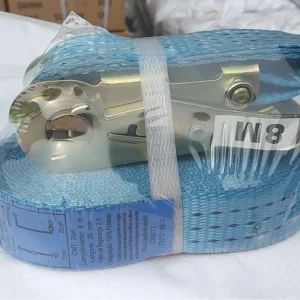

To support our global wholesale partners and distributors, we provide fully customized packaging solutions (including custom retail double-blister packs, color boxes, and high-density industrial bulk cartons) tailored to your brand's unique marketing specifications.
About LDR: Your Trusted Cargo Control & Rigging Partner
As a premier global ratchet strap manufacturer, LDR has dedicated over two decades to engineering, manufacturing, and supplying high-performance load securement and lifting solutions. Operating from our state-of-the-art production facility, we specialize in high-tenacity polyester webbing weaving, advanced hardware forging, and rigorous load-testing systems.
Our comprehensive portfolio serves critical sectors worldwide, including international logistics, military transport, heavy construction, and automotive towing. Backed by international quality certifications (including CE, GS, and ISO9001), LDR combines world-class automated precision with rigid quality control. From customized length webbing to proprietary hardware designs, we provide global distributors, industrial wholesalers, and OEM partners with unmatched supply chain reliability, competitive factory-direct pricing, and rapid cross-border fulfillment.
