Vital Lever Chain Block | HSZ-V

HSZ‑V Vital Lever Chain Block / Industrial Lifting Equipment

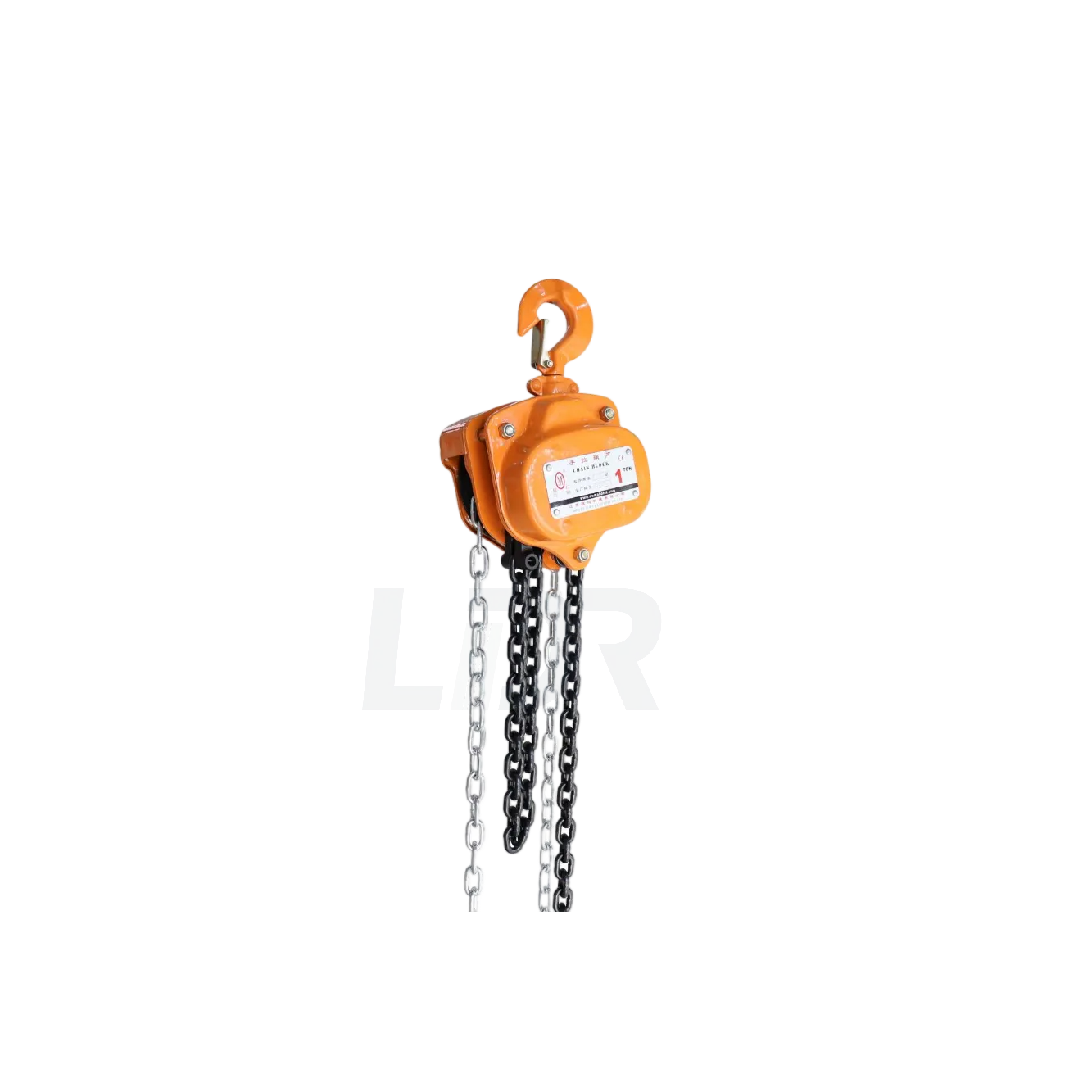

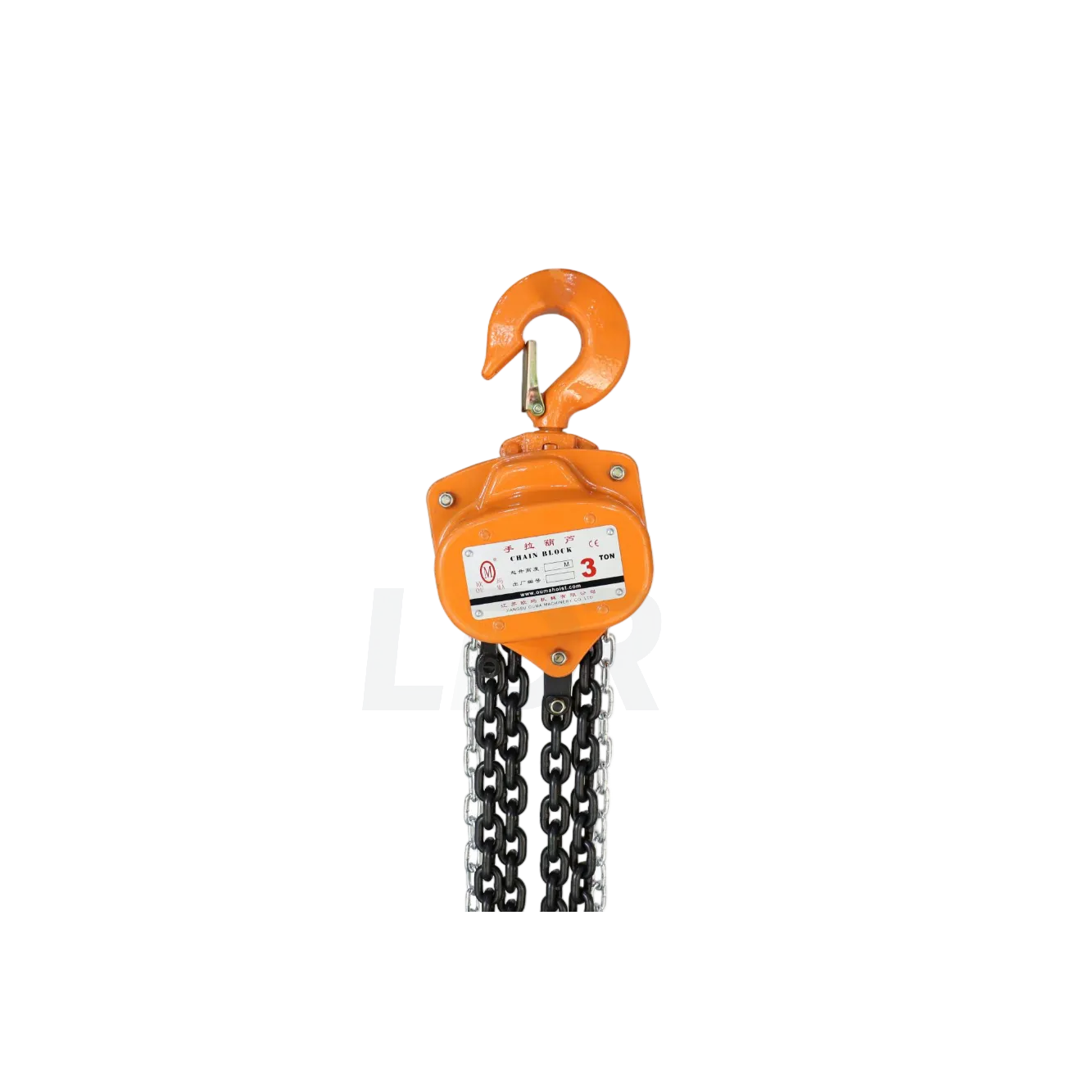

HSZ‑V manual chain hoist (also recognized in specialized rigging configurations as a Vital lever chain block, manual chain block, or hand chain block) is a professional-grade lifting solution engineered for demanding industrial environments. Operating strictly on manual mechanical advantage without the need for an electrical power source, it provides highly efficient lifting and positioning for critical heavy-duty jobs in remote locations and off-grid facilities.

Constructed with precision-machined internal gears and heavy-duty forged alloy steel, the HSZ-V series ensures exceptional durability and resistance to deformation under extreme structural stress. As a core offering from an established chain block supplier, this high-capacity model provides a broad lifting range spanning from 0.5 tons up to a maximum load limit of 100 tons, making it a foundational tool for global distribution networks and large-scale industrial projects.

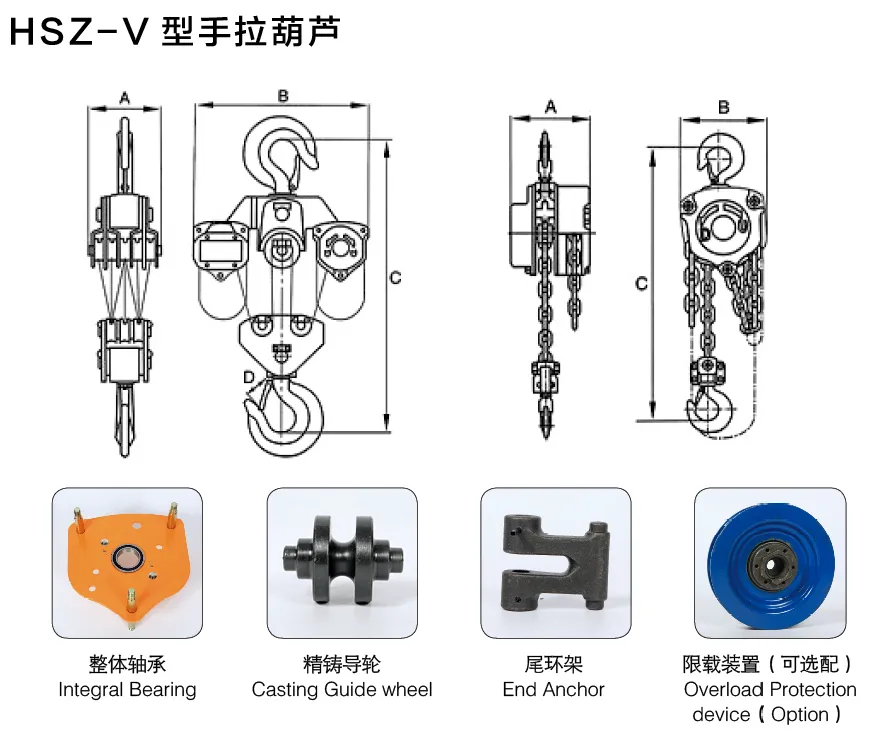

Technical Drawing & Dimensions Layout

Precision-Engineered Blueprint Alignment: The schematic above highlights the optimized structural dimensions (A, B, C, D) of the HSZ-V series. These precise mechanical clearances ensure the hoist maintains absolute stability and high power-to-weight alignment across intensive industrial environments.

• Dimension A (Housing Width): Streamlined compact chassis layout engineered for side-clearance efficiency in narrow spaces.

• Dimension B (Overall Body Diameter): Optimized side-plate spacing protecting the high-torque internal gear train.

• Dimension C (Minimum Headroom): Highly optimized headroom design maximizing your effective lifting height under restricted overhead frameworks.

• Dimension D (Hook Opening Throat): Wide forged throat dimension offering effortless rigging attachment to high-tonnage slinging accessories.

Core Components & Engineering Specifications

Integral Bearing

• High-Load Friction Reduction: Heavy-duty integral bearing integrated into the core drive mechanism to replace traditional friction bushings.
• Kinetic Efficiency: Drastically lowers operator required hand-pull force, offering ultra-smooth chain tracking and ensuring low-noise performance during peak rigging schedules.

Casting Guide Wheel

• Precision-Molded Alignment: Investment-cast guide wheels engineered for extreme dimensional stability and wear resistance.
• Anti-Jam Architecture: Ensures accurate alignment and flawless, snag-free tracking of the G80 load chain, completely preventing chain twisting or link derailment under high angles.

End Anchor

• Fail-Safe Linkage Termination: Heavy-duty carbon steel end anchor designed as a rigid safety termination unit for the load chain.
• Uniform Stress Distribution: Structurally fixed to the chassis to eliminate failure risks and slippage under full capacity or high-vibration shock-loading.

Overload Protection Device

• Enterprise Asset Safeguard: Optional mechanical clutch-based overload protection matrix designed for high-risk industrial lifting systems.
• Automatic Slip Intervention: Automatically slips to halt lifting the exact millisecond the load exceeds rated capacities, safeguarding operators and protecting the internal hoist mechanics from structural failure.

Technical Advantages & Engineering Design

• Dual Brake Safety Architecture: Features a dependable, highly responsive double-pawl mechanical braking system that delivers immediate, zero-slip load holding to prevent accidental load drops.

• Precision Internal Gear Trains: Equipped with precision-machined internal gears that optimize transmission efficiency, providing smoother operations while significantly reducing manual hand-pull force and operator fatigue.

• High-Strength Forged Alloy Steel: The load-bearing chassis and drop-forged hooks are expertly engineered from high-grade alloy steel to resist structural deformation under rigorous daily industrial loading cycles.

• Certified Grade 80 Load Chain: Outfitted standard with premium, wear-resistant G80 load chain fully certified to international EN818-7 European standards.

• Optional Overload Protection Matrix: Can be custom-configured with an integrated mechanical overload limitation device to prevent lifting beyond rated capacities, enhancing workplace safety.

• Compact, Mobile Layout: The lightweight and highly space-efficient profile allows for seamless transport, quick rig installation, and stable execution in low-clearance or restricted mobile applications.

Product Details

EU CERTIFIED EN818-7 STANDARD PATENT LIFTING CHAIN	ALLOY STEEL HOOK	DOUBLE POSITIONING PIN END ANCHOR
SPECIALLY DESIGNED FOR LIFTING AND EASY LIFTING	DOUBLE PAWL PRECISE BRAKE	LIGHT HAND PULL

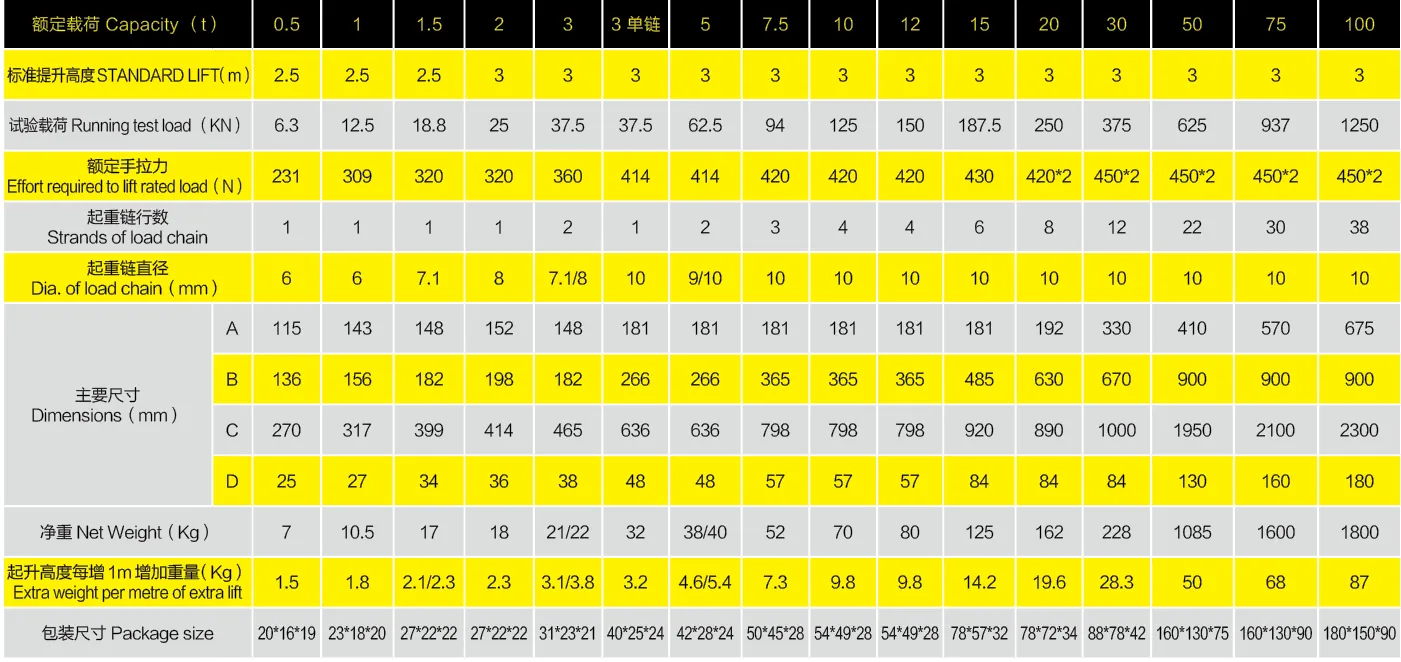

Technical Specifications

The data below represents the standard production parameters for our commercial chain block hoist selection. For custom lifting lengths, specialized technical drawings, or bulk procurement packages, please consult our engineering department.

Capacity (t)		0.5	1	1.5	2	3	3 (Single chain)	5	7.5	10	12	15	20	30	50	75	100
STANDARD LIFT(m)		2.5	2.5	2.5	3	3	3	3	3	3	3	3	3	3	3	3	3
Running test load (KN)		6.3	12.5	18.8	25	37.5	37.5	62.5	94	125	150	187.5	250	375	625	937	1250
Effort required to lift rated load (N)		231	309	320	320	360	414	414	420	420	420	430	420*2	450*2	450*2	450*2	450*2
Strands of load chain		1	1	1	1	2	1	2	3	4	4	6	8	12	22	30	38
Dia. of load chain (mm)		6	6	7.1	8	7.1/8	10	9/10	10	10	10	10	10	10	10	10	10
Dimensions (mm)	A	115	143	148	152	148	181	181	181	181	181	181	192	330	410	570	675
	B	136	156	182	198	182	266	266	365	365	365	485	630	670	900	900	900
	C	270	317	399	414	465	636	636	798	798	798	920	890	1000	1950	2100	2300
	D	25	27	34	36	38	48	48	57	57	57	84	84	84	130	160	180
Net Weight (Kg)		7	10.5	17	18	21/22	32	38/40	52	70	80	125	162	228	1085	1600	1800
Extra weight per metre of extra lift (Kg)		1.5	1.8	2.1/2.3	2.3	3.1/3.8	3.2	4.6/5.4	7.3	9.8	9.8	14.2	19.6	28.3	50	68	87
Package size		20*16*19	23*18*20	27*22*22	27*22*22	31*23*21	40*25*24	42*28*24	50*45*28	54*49*28	54*49*28	78*57*32	78*72*34	88*78*42	160*130*75	160*130*90	180*150*90



Heavy-Duty Commercial Applications

Because the HSZ-V chain hoist block operates independently of power grids, it is heavily utilized by international procurement managers for harsh, unpowered, and high-load industrial settings:

• Infrastructure & Construction Projects: Ideal for positioning heavy structural steel columns, adjusting heavy concrete panels, and moving bulk infrastructure equipment across active job sites.

• Shipbuilding, Marine, & Dockside Operations: Engineered to deliver intense pulling capability; used in shipyards to align heavy steel plates, service massive ship propulsion components, and load heavy cargo.

• Manufacturing & Heavy Machinery Plants: Acts as a reliable utility hoist for moving massive die assemblies, positioning industrial gearboxes during assembly, and conducting heavy asset maintenance.

• Subterranean Mining & Resource Extraction: Provides an intrinsically safe, spark-free manual lifting option for underground mine track alignment, conveyor assembly, and off-grid asset positioning.

B2B Supply Chain & Compliance Support

LDR Rigging optimizes global wholesale supply chains through rigorous manufacturing and logistics management:

• International Compliance Matrix: Standard models are fully certified to CE and EN818-7 standards, meet ISO 9001 factory criteria, and align with OSHA safety workplace mandates.

• Comprehensive Quality Assurance: Every production batch undergoes strict load testing, with complete factory test reports and third-party validation (SGS, BV, ABS) supported upon contract request.

• Flexible Wholesale Logistics: Full support for professional commercial payment frameworks—including Telegraphic Transfer (T/T) structures and irrevocable Letter of Credit (L/C) at sight mechanisms for heavy enterprise volume.

Related Products

• SZ-VD Hand Chain Block - Premium upgraded model
• HSH-V Lever Hoist - Pull-to-lift alternative
• Electric Chain Hoists - Powered version
• Grade 80 Lifting Chains - Replacement chains

B2B Supply Chain & Compliance Support

LDR Rigging optimizes global wholesale supply chains through rigorous manufacturing and logistics management:

• International Compliance Matrix: Standard models are fully certified to CE and EN818-7 standards, meet ISO 9001 factory criteria, and align with OSHA safety workplace mandates.

• Comprehensive Quality Assurance: Every production batch undergoes strict load testing, with complete factory test reports and third-party validation (SGS, BV, ABS) supported upon contract request.

• Flexible Wholesale Logistics: Full support for professional commercial payment frameworks—including Telegraphic Transfer (T/T) structures and irrevocable Letter of Credit (L/C) at sight mechanisms for heavy enterprise volume.

Commercial Procurement & Technical Support FAQ

Q1: What structural customization capabilities does LDR Rigging offer for lifting height?

• Engineering Framework: While standard product runs feature a default lift of 2.5m to 3m, our factory provides complete OEM modification capabilities.

• Incremental Extensions: Custom hoist profiles can be engineered with calibrated extended lifts in precise 1-meter increments to match specific project clearance blueprints.

• Procurement Billing: Extended configurations are itemized and billed transparently based on the additional linear meters of certified load and hand chain required.

Q2: What are the mandated industrial maintenance protocols for compliance?

• Daily Pre-Operation Inspection: Rigging engineers must perform a visual check of the structural hooks, load chain links, and top pin anchors prior to every shift.

• Weekly Operational Validation: The Weston mechanical brake function must undergo a static load hold check weekly to ensure zero drift.

• Monthly Tribological Care: To prevent friction wear and environmental corrosion, the Grade 80 load chain requires deep lubrication on a monthly schedule.

• Annual Regulatory Servicing: In adherence to ASME B30.16 industrial standards, a thorough teardown, non-destructive inspection, and certification must be executed every 6 to 12 months by a certified technician.

Q3: How does LDR Rigging manage global spare parts availability for supply chain continuity?

• Complete Lifecycle Support: We maintain a dedicated industrial inventory of completely traceable, factory-original spare parts to ensure rapid maintenance turnaround.

• Component Inventory Matrix: Procurement batches and contract clients can readily secure replacement certified load chains, drop-forged hooks, precision brake discs/pawls, transmission gear sets, integral bearings, and stamped guide plates.

Q4: What commercial payment frameworks are accepted for global wholesale and contract orders?

To facilitate secure, enterprise-grade international trade and fluid financial logistics, we support multiple compliant transactional structures:

• Telegraphic Transfer (T/T Balance Framework): Standard commercial terms require a 30% advance deposit to initiate production, with the remaining 70% balance settled upon factory inspection confirmation prior to seaport dispatch.

• Letter of Credit (Documentary L/C): For high-volume enterprise orders and EPC project contracts, we accept 100% Irrevocable Letters of Credit (L/C) at sight.

• E-Commerce & Sample Remittance: For proto-type evaluations, sample testing, or low-volume courier shipments, payments can be streamlined via PayPal or Western Union channels.
