HSZ-D Hand Chain Hoist - Industrial Lifting Block
HSZ‑D heavy duty manual chain hoist is a precision-engineered manual lifting device designed for continuous, high-capacity material handling in demanding industrial environments. As a professional-grade manual chain block, it provides a safe, highly efficient, and cost-effective mechanical lifting solution for critical operations where electrical power supplies are either unavailable or structurally restricted.
Equipped with optimized transmission gears, premium high-strength alloy steel components, and advanced carburizing heat-treatment technology, the HSZ-D series ensures exceptionally smooth kinetic operation, low hand-pull resistance, and an extended service life under intensive daily rigging schedules.
LDR Rigging manufactures these hand chain hoists to meet stringent international quality metrics, supplying a dependable, non-electric option for global distribution networks, equipment installation projects, and heavy industrial maintenance sectors.
Technical Advantages & Structural Engineering
-
Advanced 20CrMnTi Gear Transmission: All internal gear transmission parts are forged from premium 20CrMnTi alloy steel and undergo a strict carburizing heat treatment process. This significantly increases wear resistance, torque capacity, and gear fatigue life.
-
Integrated Bearing Structure: Engineered with high-precision integral bearings that minimize mechanical friction, ensuring a lighter hand pull and smooth, effortless load spotting compared to standard bushing models.
-
EU Certified Lifting Chain: Equipped as standard with premium grade alloy load chain compliant with the EN818-7 standard, paired with a corrosion-resistant zinc-plated hand chain.
-
Expertly Drop-Forged Hooks: The load and top hooks are drop-forged and expertly heat-treated to ensure immense structural strength, a wide hook opening for versatile rigging attachment, and long-wearing durability.
-
Double Pawl Precise Brake System: Features a dual positioning pin end anchor and a highly responsive double-pawl mechanical brake system for immediate, zero-slip load holding.
-
Customizable Lift Heights: Standard lift lengths are readily available, and specialized custom lifting lengths can be engineered upon request to match specific project blueprints.

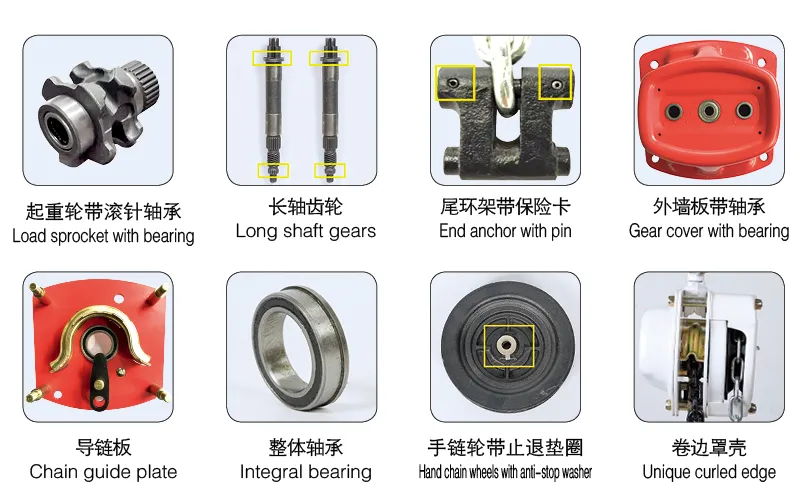

Core Components & Internal Structure
-
Load sprocket with bearing
-
Premium load sprocket integrated with heavy-duty needle bearings to minimize mechanical friction and ensure ultra-smooth load chain movement.
-
-
Long shaft gears
-
High-torque long shaft gears forged from alloy steel, precision-machined for optimal transmission efficiency and fatigue resistance.
-
-
End anchor with pin
-
Reinforced structural end anchor secured with double positioning safety pins, eliminating any risk of chain dislodgement.
-
-
Gear cover with bearing
-
Rigid gear cover and side plate equipped with heavy-duty structural bearings to maintain precise shaft alignment under maximum load.
-
-
Chain guide plate
-
Optimally shaped chain guide plate ensuring smooth, jam-free chain feeding even during high-angle rigging operations.
-
-
Integral bearing
-
Heavy-duty integral bearing ensuring a lighter hand-pull force, lower operation noise, and extended mechanical service life.
-
-
Hand chain wheels with anti-stop washer
-
Zinc-plated hand chain wheel featuring an engineering-grade anti-stop washer for flawless, zero-slip braking performance.
-
-
Unique curled edge
-
One-piece formed housing with a unique curled edge design, offering superior impact resistance and protecting internal gears from dust and moisture.
-

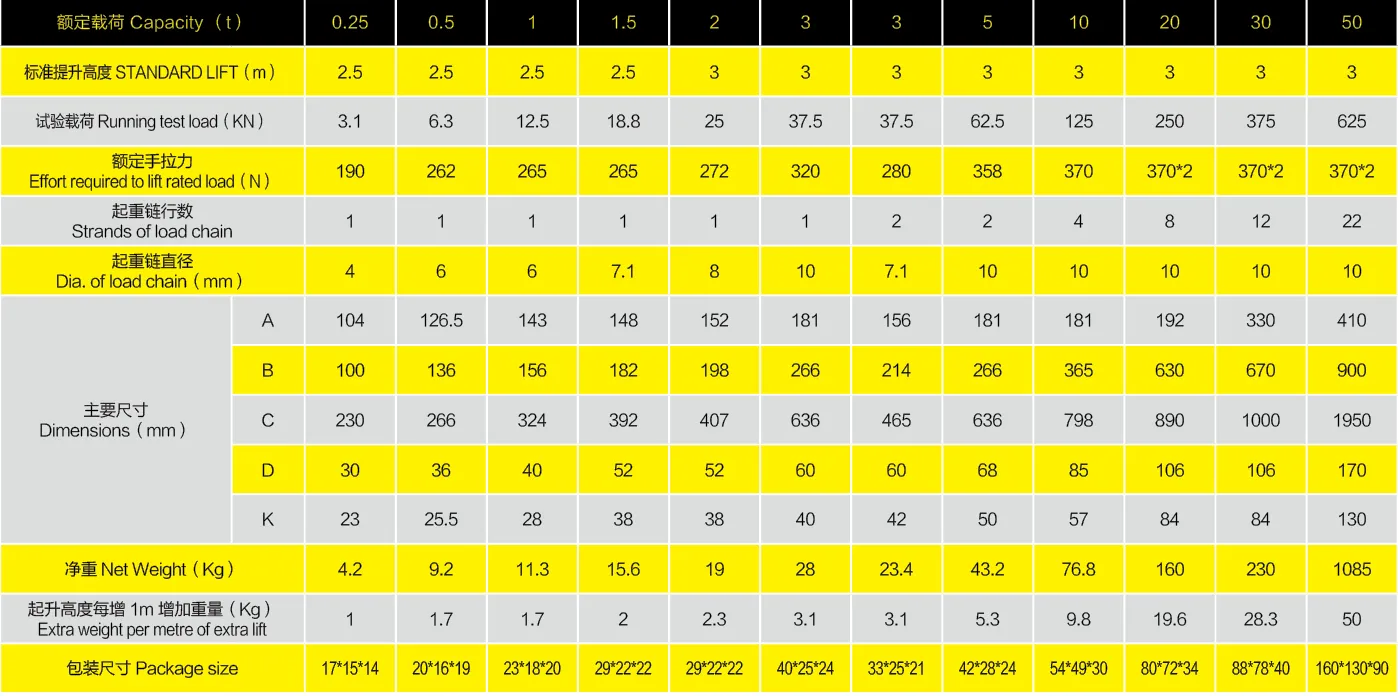

HSZ-D Hand Chain Hoist Specifications
The data below represents data for our standard product range. In case you need other technical data, please contact us.

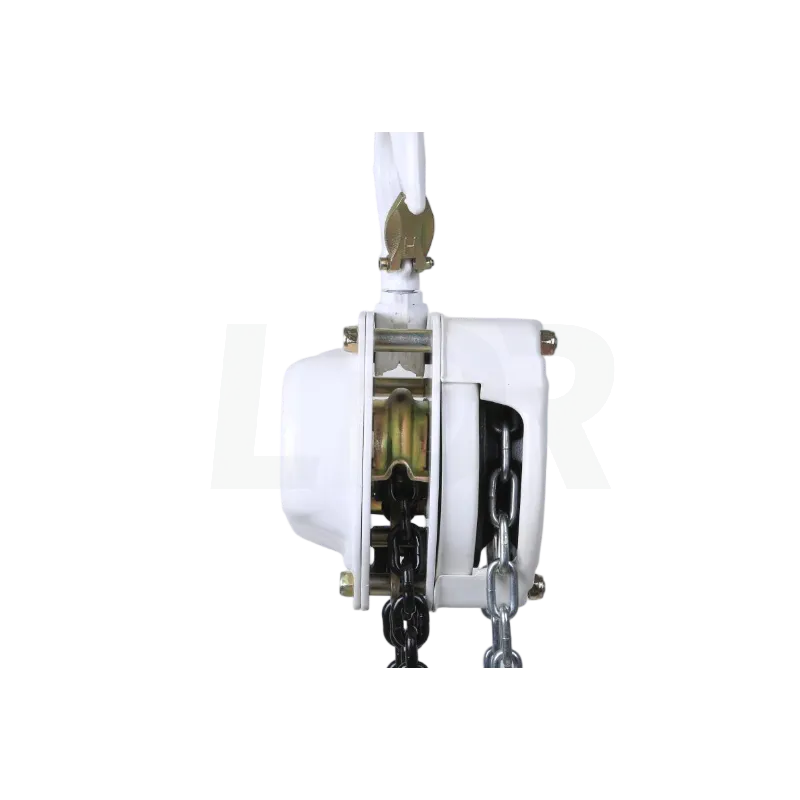

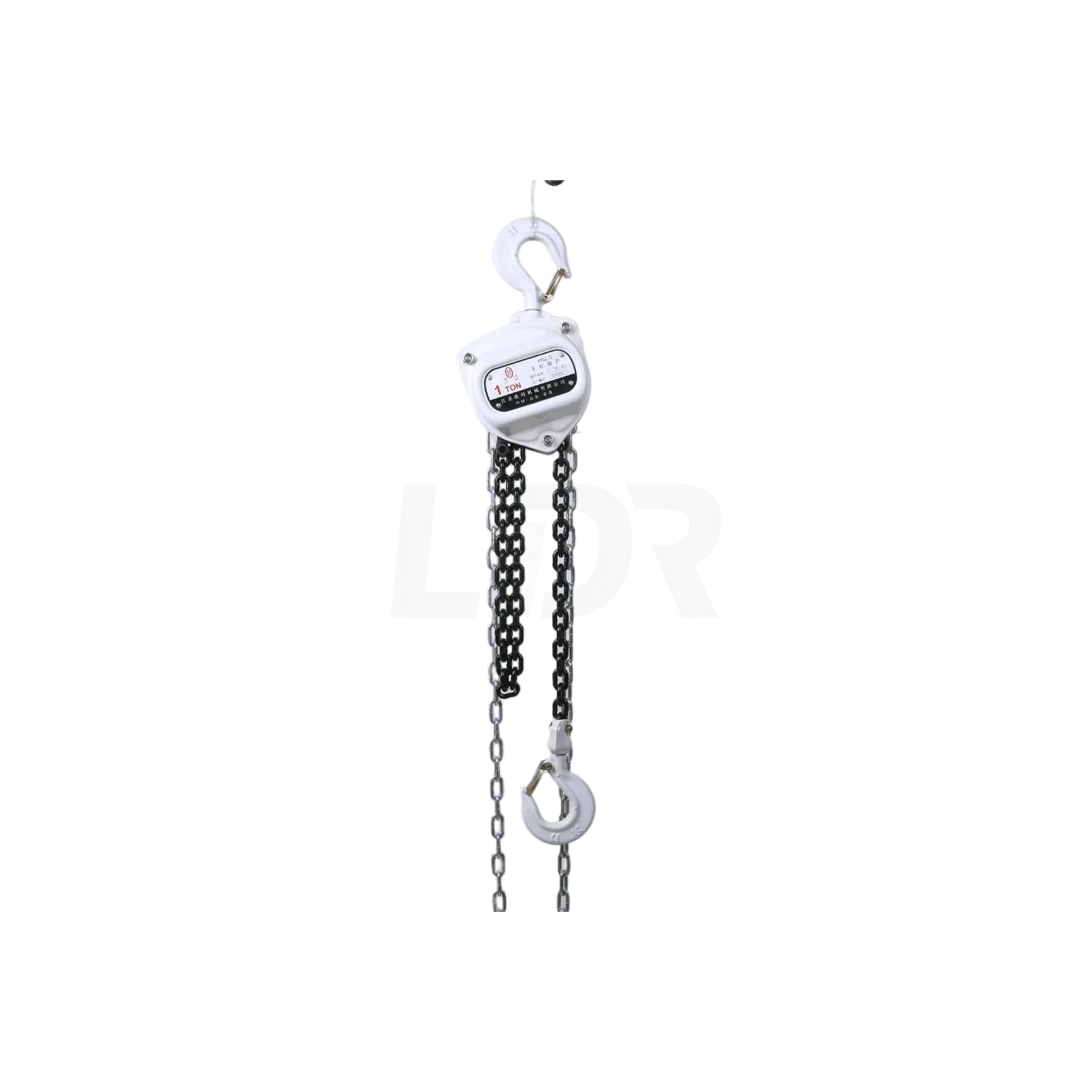

Product Details Pictures
Heavy Duty Manual Chain Hoist Industrial Applications
Because the HSZ-D manual chain block operates without an electrical power supply, it is the preferred choice for remote job sites, high-humidity marine rigging, and spark-restricted hazardous industrial zones.
-
Heavy Manufacturing & Assembly Plants: Deployed within heavy machining bays to securely lift, position, and align dense motor blocks, industrial turbines, and metal casting dies.
-
EPC Construction & Large-Scale Infrastructure: Utilized for structural rigging, lifting heavy concrete reinforcements, and positioning steel girders within high-altitude or subterranean work areas.
-
Industrial Equipment Installation & Millwrighting: Perfect for field millwrights installing heavy industrial pumps, massive piping setups, and complex ventilation systems in off-grid environments.
-
Shipbuilding, Marine, & Onshore Docks: Engineered to withstand maritime moisture; ideal for pulling massive hull sections together, maintaining shipboard engines, and loading cargo in restricted vessel quarters.
-
Subterranean Mining & Tunneling Operations: With zero risk of electrical sparking, it functions as an intrinsically safe hoisting option for underground conveyor belt maintenance and heavy mining track alignments.
-
Logistics Hubs & Heavy Warehousing: Allows for terminal loading and unloading of irregular, high-tonnage freight in tight, non-mechanized storage zones where overhead cranes or large forklifts cannot traverse.
LDR Rigging B2B Procurement and Supply Support
As a dedicated industrial chain hoists for sale manufacturer and commercial rigging supplier, LDR Rigging supports global enterprise supply chains through:
-
OEM/ODM Structural Customization: Complete engineering capacity to adjust load capacities, chains, hooks, and lift lengths to match specific project parameters.
-
Rigorous Factory Load-Testing: Every HSZ-D unit undergoes a strict proof-load test prior to batch crating, ensuring full adherence to commercial safety compliance codes.
-
Comprehensive Rigging System Integration: LDR Rigging provides full material matching, allowing procurement teams to bundle hoists with certified G80 alloy chain slings, heavy duty shackles, or high-strength webbing slings for single-source B2B logistics.
