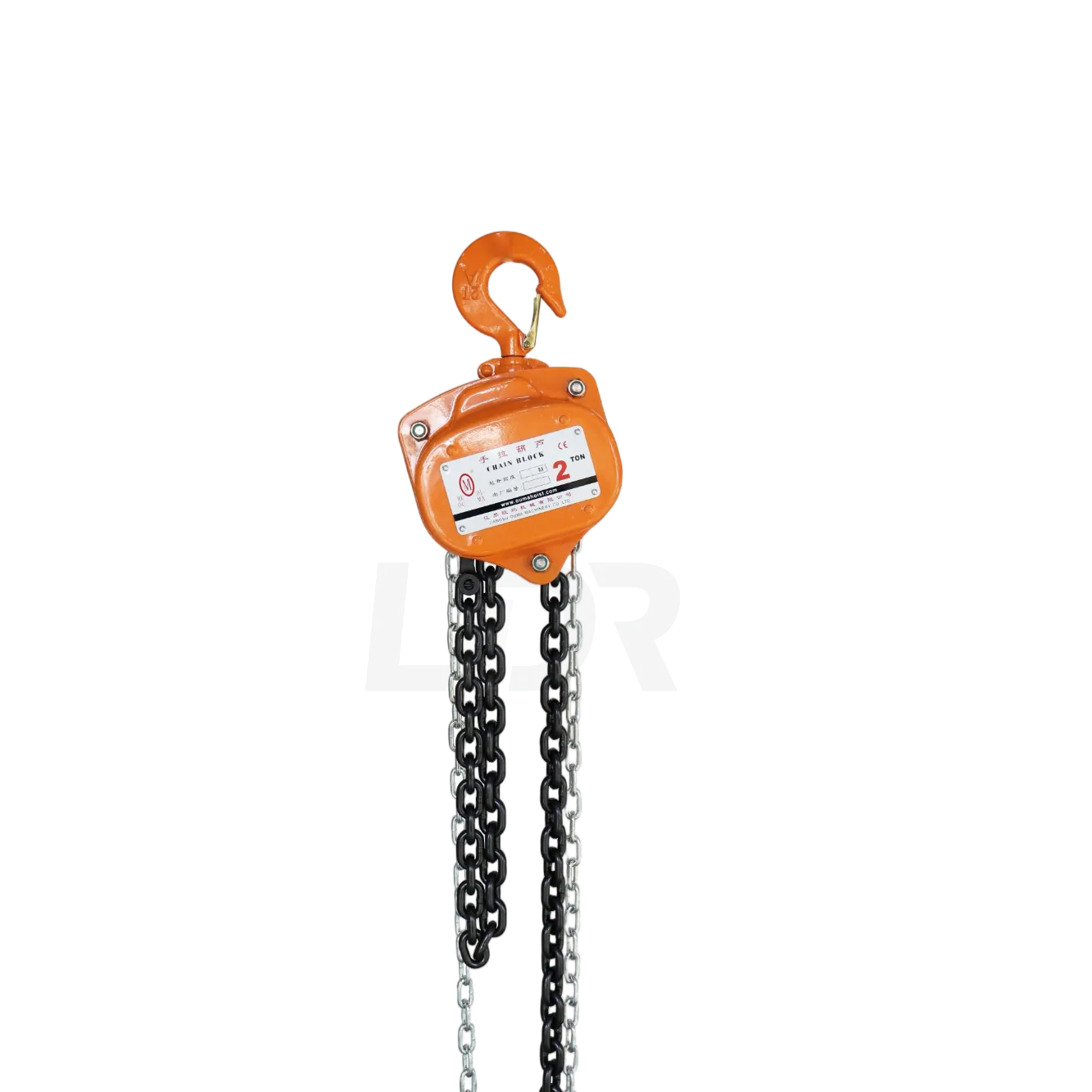

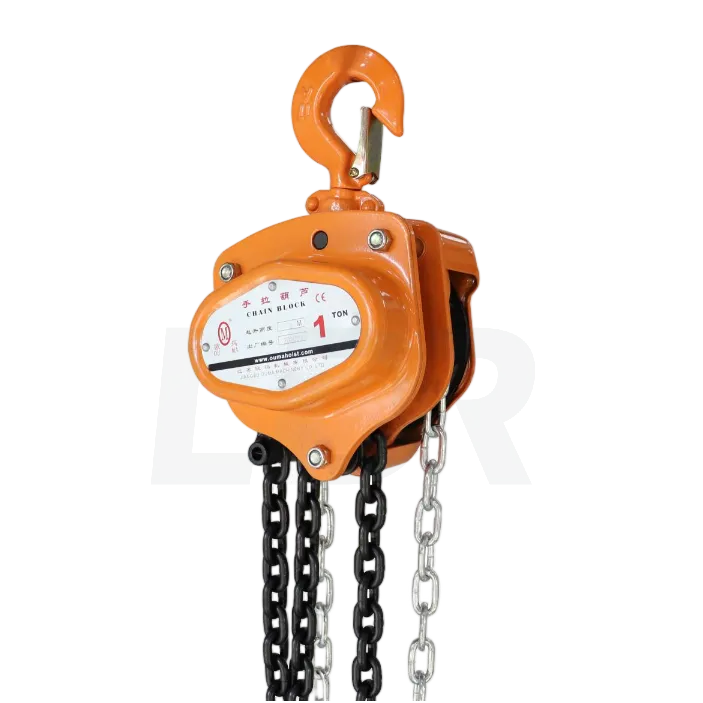

HSZ‑A Hand Chain Hoist – Heavy‑Duty Manual Chain Hoist (0.5–100 Ton)
What is HSZ‑A Hand Chain Hoist?
HSZ‑A manual chain hoist (also called chain block or hand chain block) is a compact, high‑efficiency mechanical lifting device. It requires no power supply and operates by pulling the hand chain to drive the gear system and lift heavy loads. It is widely used for equipment installation, cargo lifting, vehicle loading, ship maintenance, and construction work where electricity is unavailable.
Compared to basic models, the HSZ‑A series adopts an integrated bearing structure, heat‑treated gears, and dual guide wheels to ensure stable lifting, low noise, and extended durability even under heavy daily use.
The HSZ-A Hand Chain Hoist is a reliable manual lifting device designed for heavy-duty industrial applications. Engineered with a Weston automatic brake, G80 high‑strength load chain, and reinforced alloy construction, it delivers stable, safe lifting for factories, construction, docks, mines, and remote off‑grid job sites.
Built with high-strength alloy components and precision gear transmission, the HSZ-A chain block ensures smooth operation, reduced pulling force and long service life.
The hoist is equipped with premium grade alloy load chain, zinc plated hand chain and drop-forged hooks, ensuring safety and durability even under demanding working conditions.
Its compact structure, reliable braking system and optimized mechanical design make the HSZ-A hand chain hoist one of the most commonly used manual lifting equipment in industrial lifting tasks.
Core Advantages
- CE & GS certified, compliant with EN13157 & JB/T 7334 standards
- G80 manganese alloy load chain – wear‑resistant & break‑proof
- Weston dual‑pawl brake system – instant load hold, zero drop risk
- Full bearings inside – ultra‑smooth pull, low operation force
- Reinforced alloy shell – anti‑collision, dust‑proof, long service life
- 360° swivel hooks with safety latches – prevent chain twisting
- Compact, lightweight, easy to carry & maintain
- 0.5T / 1T / 2T / 3T / 5T / 10T capacity available
Key Features & Engineering Design

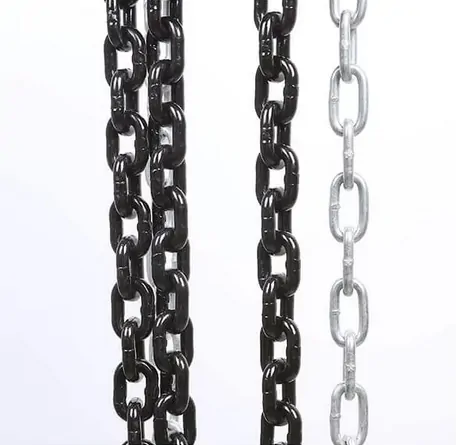

1. G80 High‑Strength Load Chain
Heat‑treated manganese alloy steel with 5:1 safety factor. Resists abrasion, impact, and corrosion. Each chain is 100% tested before assembly to ensure stable performance and long service life.

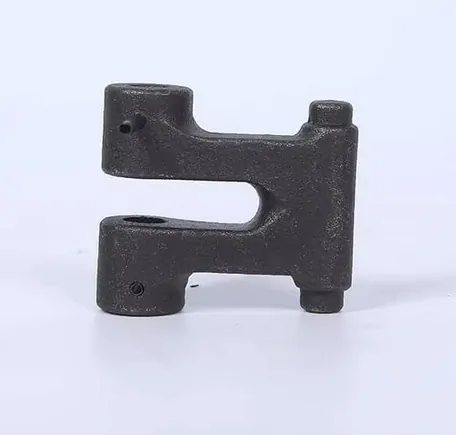

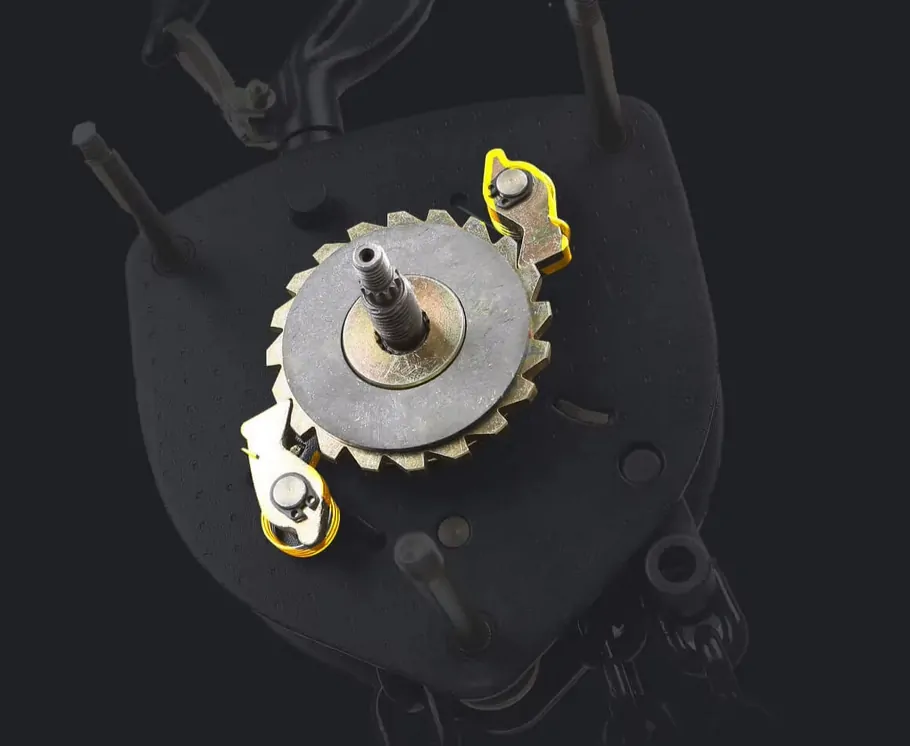

2. Weston Automatic Load Brake
Dual‑pawl mechanical brake engages instantly when you stop pulling. Prevents load slippage and ensures safe operation even in shock‑loading conditions. No manual locking required.
3. Full Bearing Drive System
Integral bearings on main shaft and gear components reduce friction significantly. Lighter pulling force, smoother lifting, less wear, and higher efficiency than standard models.
4. Reinforced Alloy Housing
One‑piece formed shell provides stronger impact resistance. Protects internal gears from dust, moisture, and collision damage – ideal for harsh construction and mining environments.

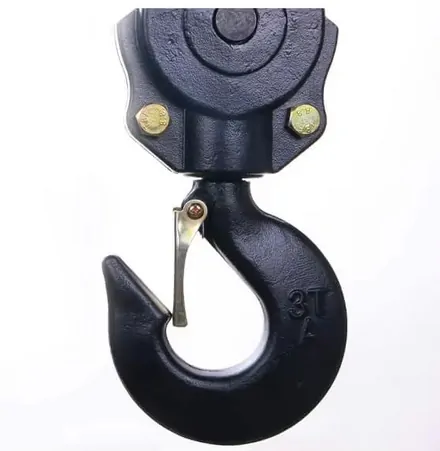

5. Forged Safety Hooks
High‑strength forged alloy hooks with safety buckles. 360° swivel design prevents chain entanglement and ensures stable load positioning.

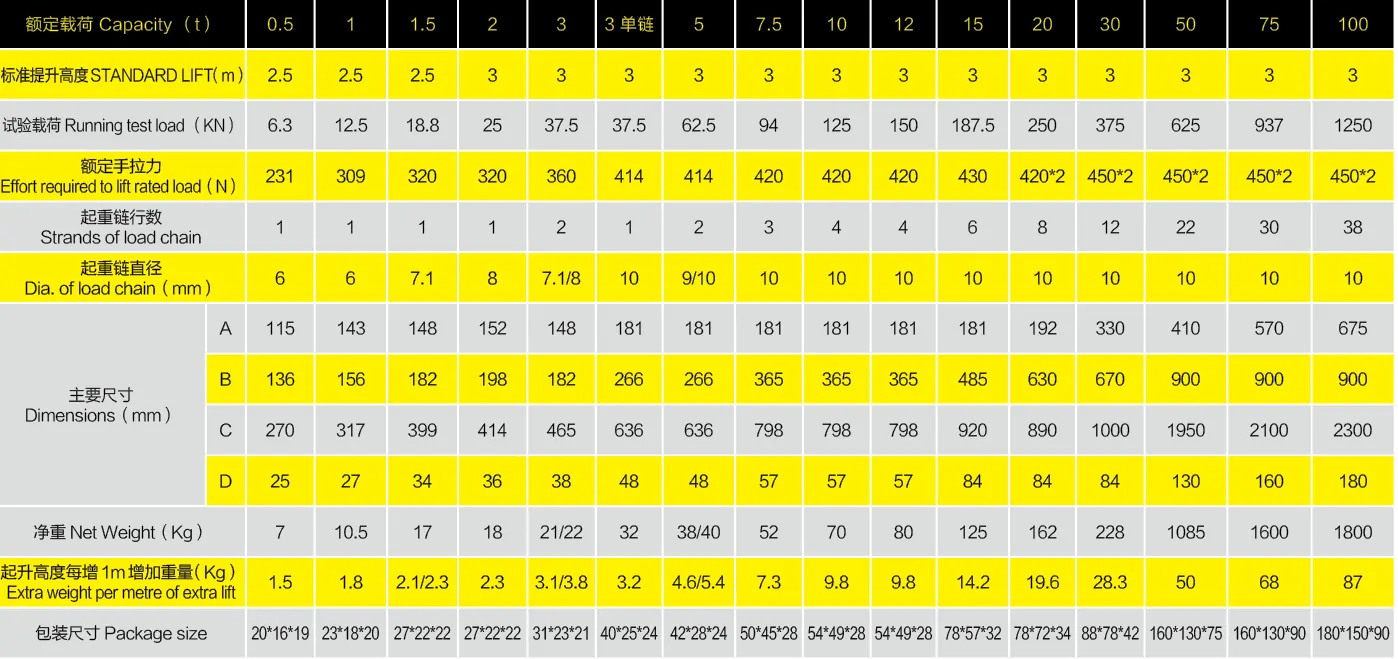

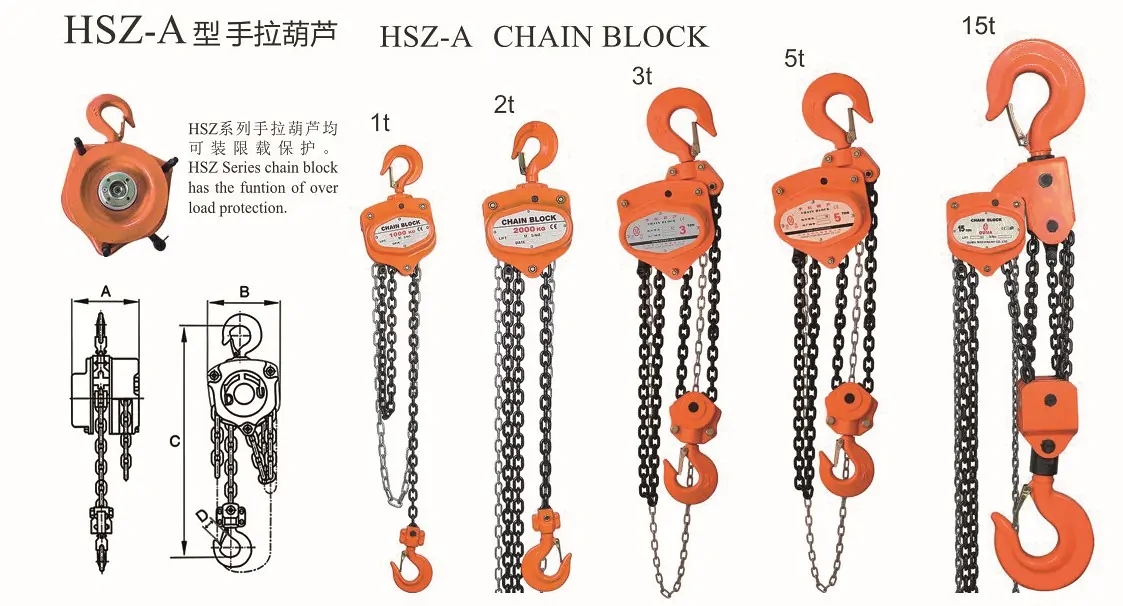

Technical Specifications (HSZ‑A Series)
The data below represents data for our standard product range. In case you need other technical data, please contact us.

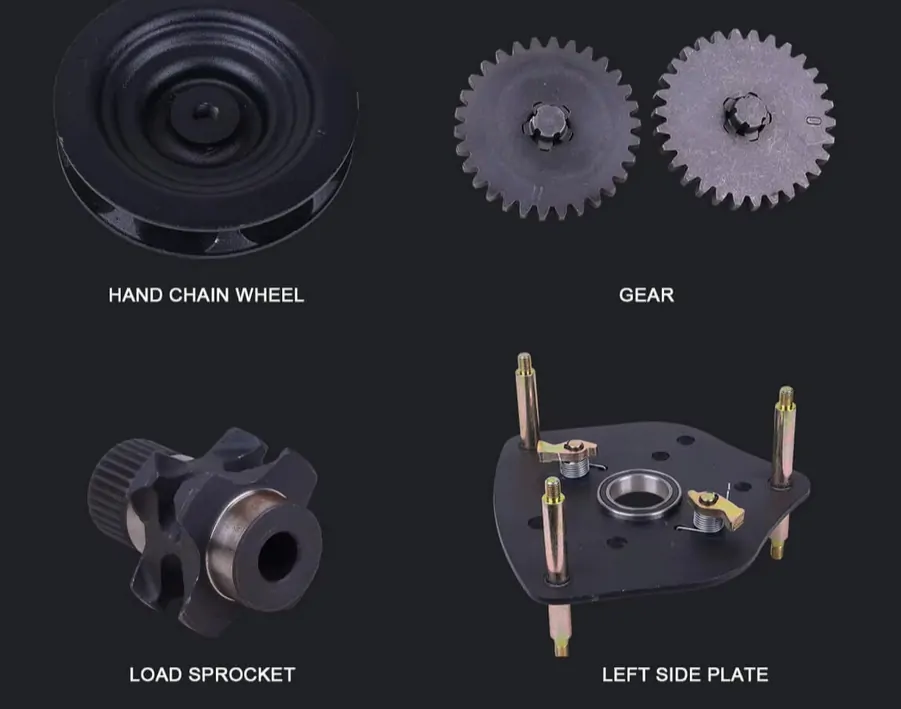

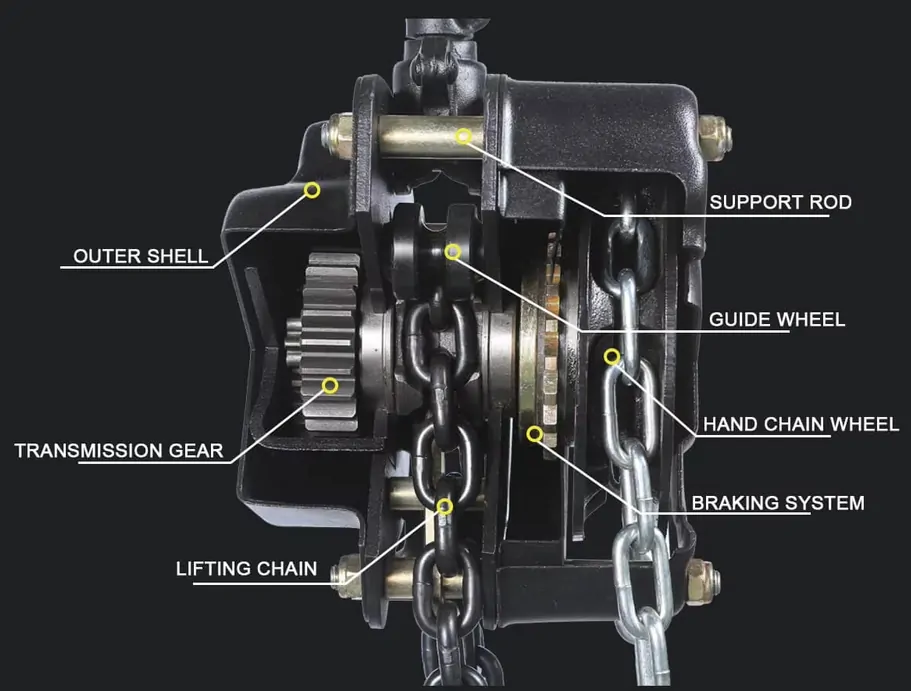

Product Details Pictures

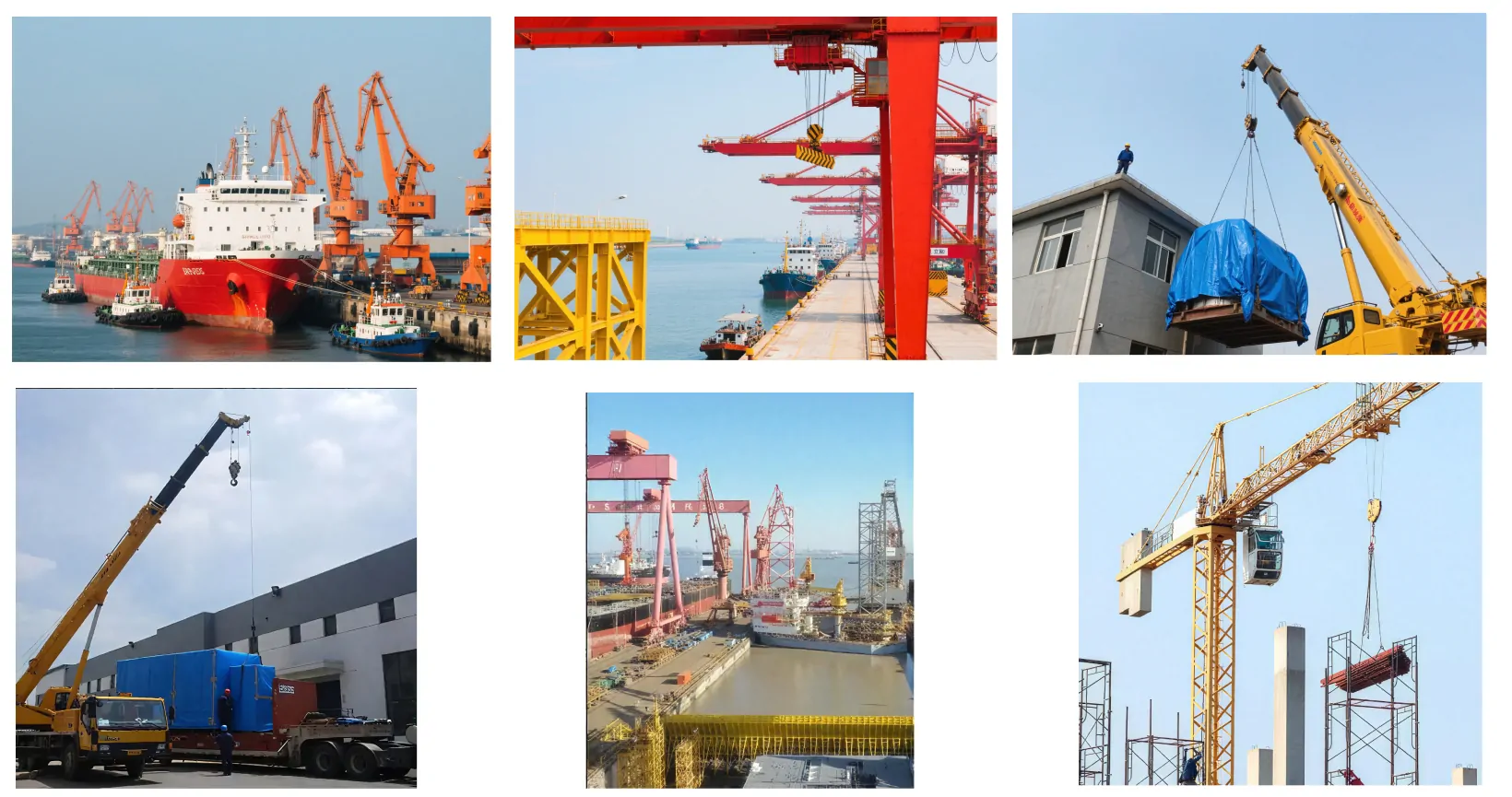

Applications of HSZ-A Manual Chain Hoist
The HSZ-A manual chain block is widely used in various lifting operations:
-
Construction sites
-
Manufacturing plants
-
Warehouses and logistics centers
-
Shipbuilding industry
-
Mining operations
-
Equipment installation and maintenance
It is one of the most commonly used manual lifting equipment for lifting and positioning heavy loads.
Operation & Maintenance Tips (Professional Guide)
- Do NOT exceed the rated working load.
- Inspect hooks, chains, and brake before each use.
- Keep the chain clean; avoid sand, mud, and chemicals.
- Lubricate gears and brake components regularly.
- Store in dry, ventilated areas to prevent rust.
- Replace worn or damaged chains immediately.
Maintenance Tips for Hand Chain Hoists
Proper maintenance ensures safe operation and extends the service life of the HSZ-A chain hoist.
Regular Chain Inspection
Check the load chain regularly for wear, deformation or corrosion.
Lubricate Moving Parts
Apply lubrication to the gears, bearings and chain to maintain smooth operation.
Avoid Overloading
Always operate the hoist within its rated load capacity to prevent damage.
Store in Dry Environment
Store the hoist in a dry place to prevent rust and corrosion.
Periodic Safety Checks
Inspect hooks, brake system and gears regularly to ensure safe lifting performance.
Related Products
If you are looking for other lifting equipment, you may also be interested in:
These lifting products can be used together with the manual chain hoist to complete various rigging and lifting tasks.
