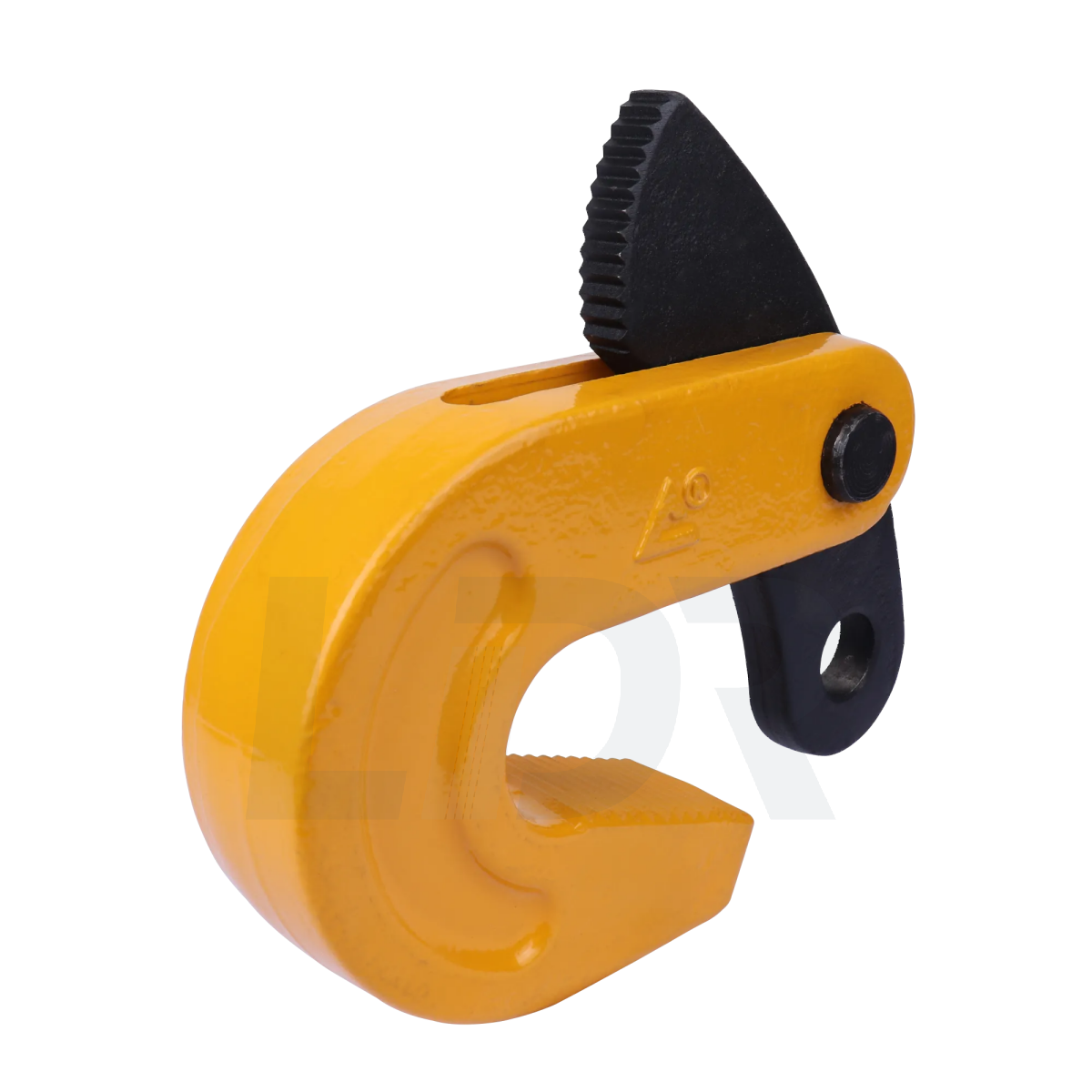

Horizontal Lifting Clamps (DHQL) L Type

Application: Horizontal lifting of steel plate .
Material: Low carbon steel alloy.
Loading range: 0 to 5 ton.
Two pieces of clamps are used for the testing, but 2 pieces or 4 pieces are recommended for lifting operation, balance beam is needed for big sized steel plate.
Testing load is 2 times of working load.
With lock spring during the clamp non-work condition, locking device going in nature step-up, put the object in the clamp, the strength becomes the proportion enhancement.
The loaded object shall not touch anything when operating, over loading is prohibited.

Product Detail

▲ Lifting clamp is a kind of very convenient tool, it can make your work easier to do. LDR lifting clamp is subordinate to LDR lifting clamp factory which is the earliest factory. LDR engages numbers of professional staff. Super quality and service assure the staff that they have better circumstance and safety. LDR lifting clamps win good reputation in Pearl River Delta, Yangzi River Delta Region, Northeast Region cause of high performance price ratio. As the designated rigging goods supplier, we establish long business relationship with Shougang Group, Sino-petro. Recently LDR has researched new products: lifting Clamps SVC type, trolleys, pulleys. We have supplied OEM service for Japan, Finland etc.

▲We always be pursuing the safety and quality of the product, and remind users in the use process pay attention to safety.

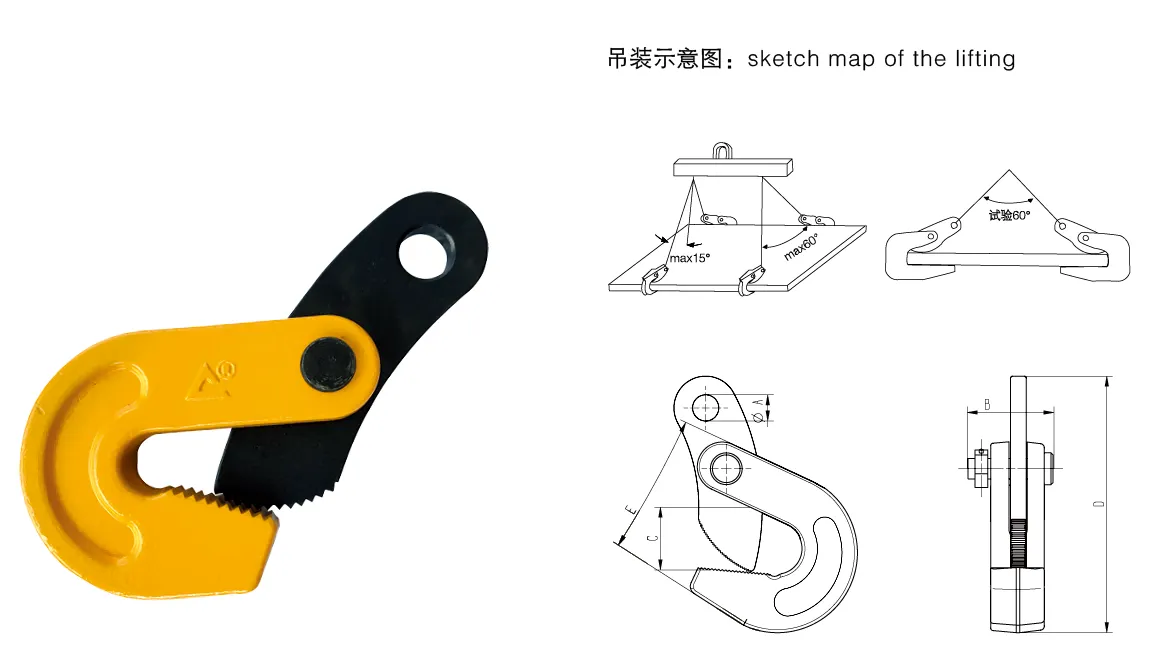

Sketch map of the lifting Horizontal Lifting Clamps (DHQL) L Type

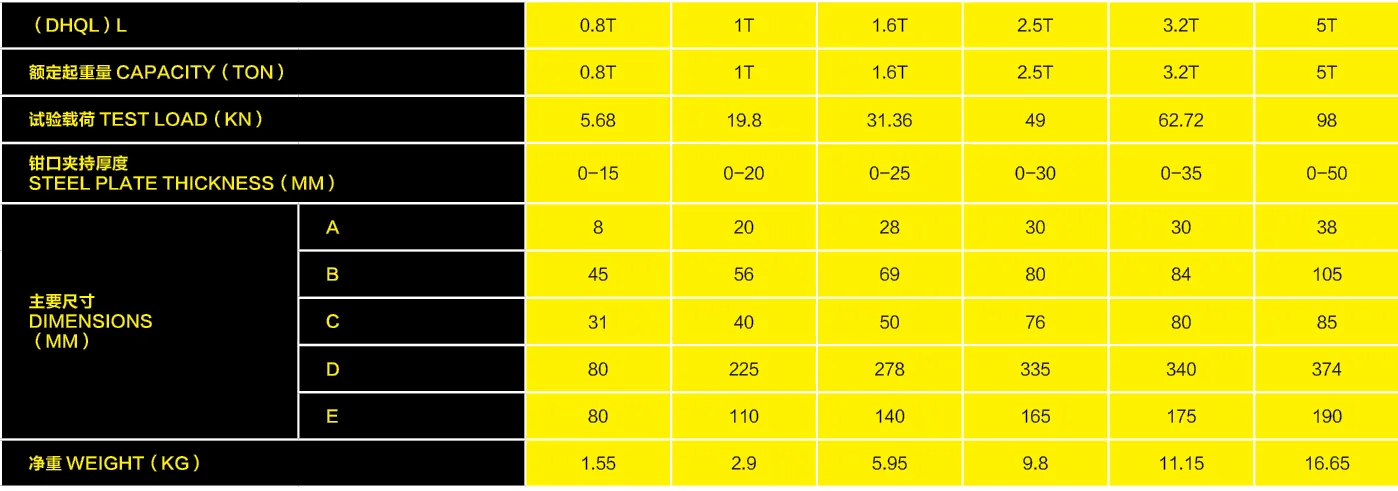

Specification

Horizontal Lifting Clamps (DHQL) L Type

Attention to using clamps safely

▲ The user must be professional person.
▲ Use the right clamp to fit the purpose.
▲ Use the clamp within the maximum work load limited.
▲ Don`t go to the place where the object clamped will fall down.
▲ Don`t knock or impact the object when loading.
▲ Don’t move or stop the object sharply while loading.
▲ Put the object at purpose position.
▲ Check the machine before use it, if they are distortion breakdown, wear out badly. Please don`t use it.
▲ Two hangs clamp, you must look like the balance equally vertically to lift.
▲ Pour oil on the part which can move. Note don`t let the oil on the bite, mat slice and tooth surface.
▲ Periodically check the parts under the note.
▲ Please use original accessories of our company, if you use other product, does so at his own risk.

Attention to use of lifting clamps to clamp steel

▲ Use the clamps only on steel.
▲ Don`t use in the degree of hardness excessively high object.
▲ Don`t use vertical clamps on the irregular objects.
▲ Don`t use vertical clamps on the circumstance of horizontal bite.
▲ The vertical clamps only lift one product one time.
▲ Objects such as stained with rust, oil and other foreign bodies in the erased before using clamps.
▲ The object clamped must at temperature during-20℃ to 150℃.
