EB-B Polyester Eye Type ASME B30.9 Webbing Sling

Product Overview

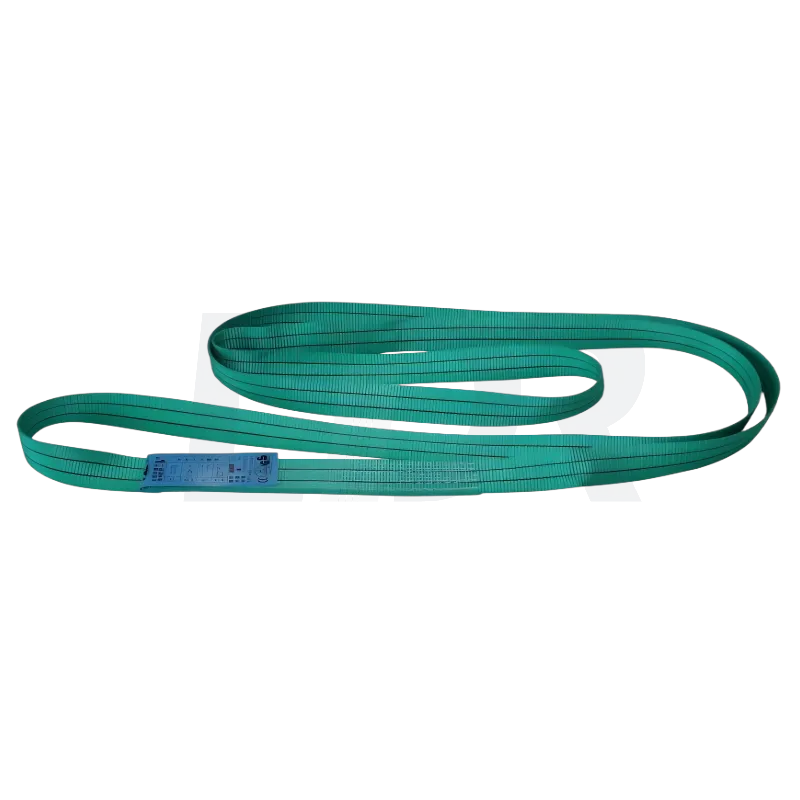

LDR EB-B Series Polyester Eye Type Webbing Sling (Reinforced Eye Flat Sling) is a high-capacity, heavy-duty synthetic hoisting solution engineered for demanding industrial rigging operations ranging from 1 Ton up to 50 Tons Safe Working Load (SWL). Fabricated from premium, high-density industrial polymer strands, this elite webbing slings model features an enhanced, multi-layered loop configuration specifically designed to minimize friction wear at primary crane hook contact zones.

Compared to standard EB-A configurations, the EB-B series is structurally reinforced to sustain continuous, high-frequency lifting vectors without tearing. As a premier global manufacturer, LDR provides complete international certification compliance (CE & GS marks), verified destructive load testing, and direct factory-to-business sourcing workflows.

Key Technical Features & Engineering Advantages

• AA-Grade High-Tenacity Filament (100% PES): Formulated and woven exclusively from premium, high-tenacity industrial polyester filament. This AA-grade material provides a superior strength-to-weight ratio, precise lifting stabilization, and delivers 10% higher tensile strength and significantly greater abrasion resistance than standard industry alternatives.

• Proprietary Patented R&D Blueprint: All LDR flat web slings are engineered utilizing industry-leading structural technology, legally recognized and protected under Webbing Sling Patent Number: 2020 2 1433489.9.

• Double-Stitched & Reinforced Eye Protection: The eye-to-eye lifting loops feature engineered multi-layer reinforcement stitching and protective heat-sealing. This high-density construction prevents crane hook friction fraying and extends overall rigging service life.

• Global Rigging Standards Compliance: Fully engineered, tested, and manufactured to perform in strict alignment with international regulatory compliance codes, including European EN standards, American ASME/ANSI parameters (including ASME B30.9 Webbing Sling mandates), and Australian safety regulations.

• Zero Shock & Surface Marring: The soft, lightweight structure absorbs operational lifting shock, guarantees absolute zero sparking in explosive or volatile environments, and causes no scratches, dents, or marring to polished, painted, or precast cargo surfaces.

• Rigorous Environmental Stability: The naturally inert polymer fibers exhibit superior structural resistance to prolonged UV radiation exposure, water saturation, moisture rot, and diverse aggressive industrial chemical elements.

• Comprehensive B2B Customization (OEM/ODM): Backed by our automated production facility, we offer extensive custom support for global procurement managers. This includes tailored working load capacities, customized effective lengths (up to 100m), standardized corporate color-coding, and specialized private label logo printing.

Technical Product Comparison: EB-B vs. EB-A

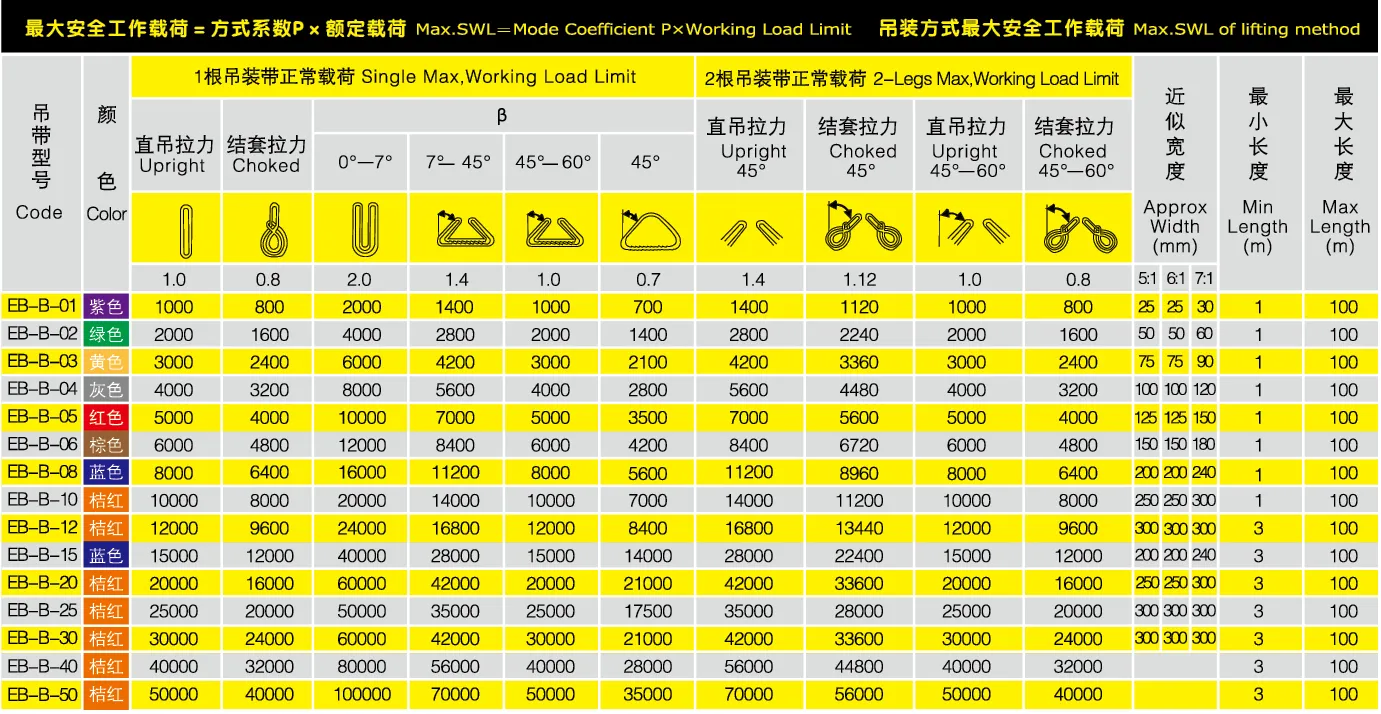

Technical Specifications

The data below represents data for our standard polyester product range. In case you need other technical data, please contact us.

Rigging Configurations & Protective Accessories

To adapt to volatile, heavy industrial work zones, LDR provides customized defensive options and supports multi-vector load geometries:

• Engineered Safety Accessories: Heavy duty wear-resistant protective sleeves, high-density anti-cutting polyurethane jackets, engineered corner protectors, and heavy duty vinyl compliance inspection tags for rigorous tracking.

• Straight Vertical Lifting: Single hook attachment utilizing 100% of the designated working load limit (WLL) for straightforward load distribution.

• Choker Lifting Geometry: Wraps securely around cylindrical or irregular loads, automatically rated at 80% of the vertical load limit.

• Basket Lifting Configuration: Anchors beneath the entire body of the cargo to balance load vectors evenly, expanding capacity up to 200% of the baseline vertical WLL.

• Multiple Leg Rigging: Symmetrical configuration utilizing custom spreader bars or multi-leg shackle configurations to hoist complex heavy machinery.

High-Tonnage Rigging Applications

Our heavy-duty EB-B Series webbing slings are engineered specifically to endure severe mechanical stress and extreme loading conditions. They are the ideal heavy duty lifting tools for the following high-risk, large-scale industrial applications:

• Heavy Steel Fabrication & Machining: Safe maneuvering of ultra-heavy structural steel I-beams, oversized industrial casting molds, and massive CNC machine components. The wide, flat surface prevents surface indentation on finished metals.

• Shipbuilding & Marine Infrastructure: Critical hoisting of maritime hull segments, propulsion shafts, and heavy port cargo container frames. High resistance to salt-water exposure ensures structural durability on open docks.

• Oil & Gas Pipeline Logistics: Moving high-pressure gas headers, large-diameter steel pipe bundles, and offshore oil refinery valves under demanding field environments.

• Wind Energy & Power Plant Installation: Precision lifting of heavy wind turbine rotor blades, generator nacelles, and substation transformers where zero-slip control and surface scratch mitigation are mandatory.

• Precast Concrete & Infrastructure Construction: Handling monumental bridge girders, thick concrete retaining segments, and precast civil engineering panels without fracturing unhardened materials.

• Heavy Mining & Excavation Fleet Maintenance: Hoisting bulk crushing cylinders, heavy-duty excavator bucket attachments, and mining truck chassis blocks during demanding overhaul schedules.

Safety, Storage & Maintenance Guidelines

To maximize on-site rigging security and optimize the operational lifespan of your heavy duty lifting tools, operators must enforce these 5 critical maintenance protocols:

1. Visual Pre-Shift Inspection: Conduct a thorough audit before every crane cycle. Check for broken stitching, heat fusion, deep chemical scoring, or surface cuts. Decommission the sling immediately if degradation exceeds 5% of the width.

2. Sharp Edge Isolation: Never allow the synthetic webbing to press directly against unmachined metal corners, sharp steel plates, or raw concrete edges. Always apply heavy duty protective sleeves.

3. Strict Capacity Limits: Never exceed the engineered Safe Working Load (SWL). Always calculate the reduced load limits if rigging at horizontal angles below 60°.

4. Zero Tensile Dragging: Do not rest heavy industrial components directly on top of the soft sling body. Dragging slings along concrete floors under tension is strictly illegal under international rigging safety codes.

5. Environmental Climate Control: Wash exclusively with clean water and mild industrial soap (no chemical bleach or volatile solvents). Store on a designated rack in a dry, dark room (≤ 25°C). Unprotected UV exposure reduces synthetic fiber tensile margins by approximately 1% per month.

Why Choose LDR — Engineered for Extreme Industrial Safety

Before selecting your exact rigging configurations and protective accessories, understand the manufacturing foundation that makes LDR the trusted choice for tier-one international heavy contractors:

• A Decade of Heavy Rigging Authority: With over 10 years of specialized manufacturing expertise, LDR stands as a leading global power in high-performance synthetic lifting technology. We transform premium, high-molecular polymers and high-tenacity industrial yarns into site-ready rigging assets engineered for the world’s most demanding environments.

• Flawless Automated Precision (100 Sets of Intelligent Equipment): Manual human error is completely engineered out of our production cycle. Our state-of-the-art facility operates 100 sets of automated, intelligent computerized sewing machines. This scale of automation guarantees maximum stitching precision, flawlessly aligned load-bearing geometries, and tight dimensional tolerances across bulk B2B procurement runs.

• Zero-Tolerance Quality Control & Destructive Testing Laboratory: At LDR, safety thresholds are non-negotiable. Every production batch undergoes comprehensive destructive break-load testing, continuous proof-load verification, and strict metallurgical/polymer QC audits in our specialized on-site tensile laboratory. Every product is certified to meet or exceed strict global engineering compliance codes before it reaches your job site.

FAQ

Q1: Why specify an EB-B reinforced sling over a standard EB-A variant?

• Structural Upgrade: The EB-B features a triple-layer folded reinforcing stitch pattern and an integrated heat-sealed protective eye jacket.

• Friction Mitigation: Built specifically to withstand high-frequency friction cycles inside heavy crane hooks and shackle pins.

• B2B Lifecycle Value: Delivers a 20% longer operational life in severe environments (steel mills, shipyards), significantly lowering your long-term equipment replacement costs.

Q2: What exact safety factors do your EB-B polyester slings conform to?

• Standard Stock: Conforms to a 5:1 safety factor ratio (Minimum Breaking Load = $5 \times$ WLL).

• Custom Engineering: For offshore oil rigging, mega-infrastructure, or high-risk sites, LDR supplies specialized 6:1 or 7:1 safety factors.

• Compliance Certification: Fully complies with European EN norms and ASME B30.9 Webbing Sling verification testing requirements.

Q3: What is the typical B2B shipping schedule and MOQ from LDR?

• Standard Inventory (1T–10T Capacity / 1m–10m Length): Supported by a Zero MOQ policy with immediate port dispatch within 3 to 7 working days.

• Custom Customization (Up to 100m, Custom Colors, Private Labels): Requires a 10 to 15-day manufacturing cycle.

• Production Fleet Scale: Timelines are strictly maintained across our 100 sets of computerized sewing machines and include mandatory tensile laboratory validation.

• Wholesale Tier Discount: Bulk commercial contract orders exceeding 1,000 units qualify for an automated 10% procurement discount.
