EA-B ASME B30.9 Round Sling

Certified ASME B30.9 Round Sling

Looking for a competitive round sling supplier for your American distribution network? LDR specializes in manufacturing high-performance, single-sleeve ASME B30.9 Round Sling equipment designed for versatile field environments. We combine automated Swiss weaving technologies with rigorous quality tracking to support global rigging contractors and wholesale industrial procurement teams.

• Compliant 5:1 Design Factor: We engineer our US standard synthetic round sling catalog strictly to the mandatory 5:1 safety margin. This architecture ensures absolute adherence to North American OSHA and ASME B30.9 material hoisting criteria.

• Heavy-Duty Capacity Identification: Every individual unit features an indestructible, heavy-duty identification tag sewn directly into the seamless polyester sleeve. This tag clearly displays traceable lot codes, construction materials, and explicit vertical, choker, and basket loading limits.

• Automated Swiss Textile Weaving: We combine premium multi-filament core winding techniques with automated Swiss Muller weaving technologies inside our quality-driven factory. This process yields excellent load balance, consistent fiber geometry, and low elastic tensile elongation under pressure.

Core Features & Narrative

• Single-Layer Engineering: Our economical single-sleeve jacket design optimizes total sling weight while maintaining high structural flexibility. The supple synthetic exterior adapts smoothly to complex load shapes without scratching sensitive or polished metallic surfaces.

• Uniform Tension Mechanics: The endless internal multi-filament yarn framework ensures uniform load distribution during heavy lifting operations. This lightweight non-conductive composition provides excellent rust resistance, making it optimal for hazardous shipping environments.

• Global Safety Certification: Every single production batch meets strict EN 1492-2 and American industrial rigging guidelines. We utilize an integrated color-coded WLL capacity identification system to prevent dangerous rigging configuration errors on site.

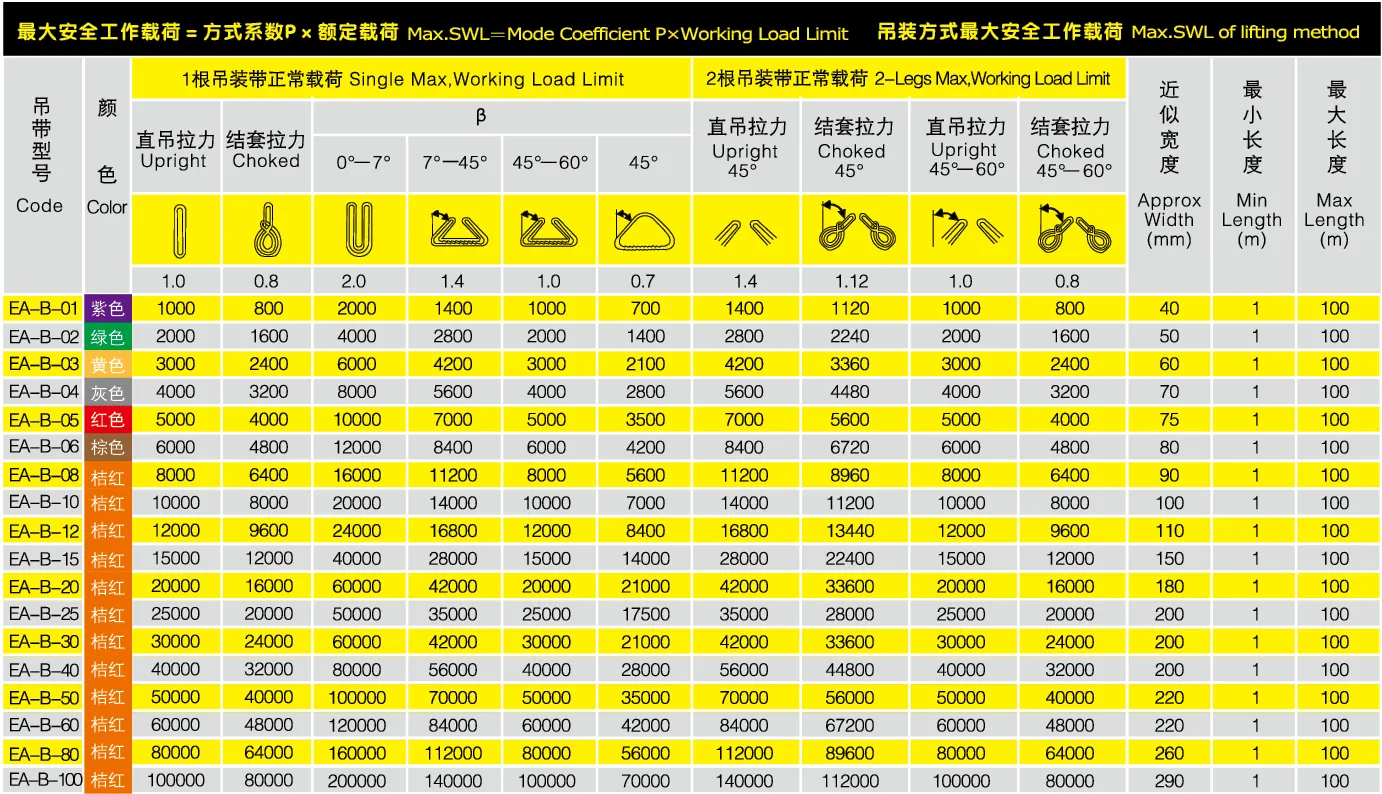

Specifications

The data below represents data for our standard polyester product range. In case you need other technical data, please contact us.

Code	Color	Single Max. Working Load Limit						2-Legs Max. Working Load Limit				Approx Width (mm)	Min Length (m)	Max Length (m)
		Upright	Choked	β				Upright 45°	Choked 45°	Upright 45°−60°	Choked 45°−60°
				0°−7°	7°−45°	45°−60°	45°
		1	0.8	2	1.4	1	0.7	1.4	1.12	1	0.8
EA-B-01	Purple	1000	800	2000	1400	1000	700	1400	1120	1000	800	40	1	100
EA-B-02	Green	2000	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	1	100
EA-B-03	Yellow	3000	2400	6000	4200	3000	2100	4200	3360	3000	2400	60	1	100
EA-B-04	Gray	4000	3200	8000	5600	4000	2800	5600	4480	4000	3200	70	1	100
EA-B-05	Red	5000	4000	10000	7000	5000	3500	7000	5600	5000	4000	75	1	100
EA-B-06	Brown	6000	4800	12000	8400	6000	4200	8400	6720	6000	4800	80	1	100
EA-B-08	Orange	8000	6400	16000	11200	8000	5600	11200	8960	8000	6400	90	1	100
EA-B-10	Orange	10000	8000	20000	14000	10000	7000	14000	11200	10000	8000	100	1	100
EA-B-12	Orange	12000	9600	24000	16800	12000	8400	16800	13440	12000	9600	110	1	100
EA-B-15	Orange	15000	12000	40000	28000	15000	14000	28000	22400	15000	12000	150	1	100
EA-B-20	Orange	20000	16000	60000	42000	20000	21000	42000	33600	20000	16000	180	1	100
EA-B-25	Orange	25000	20000	50000	35000	25000	17500	35000	28000	25000	20000	200	1	100
EA-B-30	Orange	30000	24000	60000	42000	30000	21000	42000	33600	30000	24000	200	1	100
EA-B-40	Orange	40000	32000	80000	56000	40000	28000	56000	44800	40000	32000	200	1	100
EA-B-50	Orange	50000	40000	100000	70000	50000	35000	70000	56000	50000	40000	220	1	100
EA-B-60	Orange	60000	48000	120000	84000	60000	42000	84000	67200	60000	48000	220	1	100
EA-B-80	Orange	80000	64000	160000	112000	80000	56000	112000	89600	80000	64000	260	1	100
EA-B-100	Orange	100000	80000	200000	140000	100000	70000	140000	112000	100000	80000	290	1	100

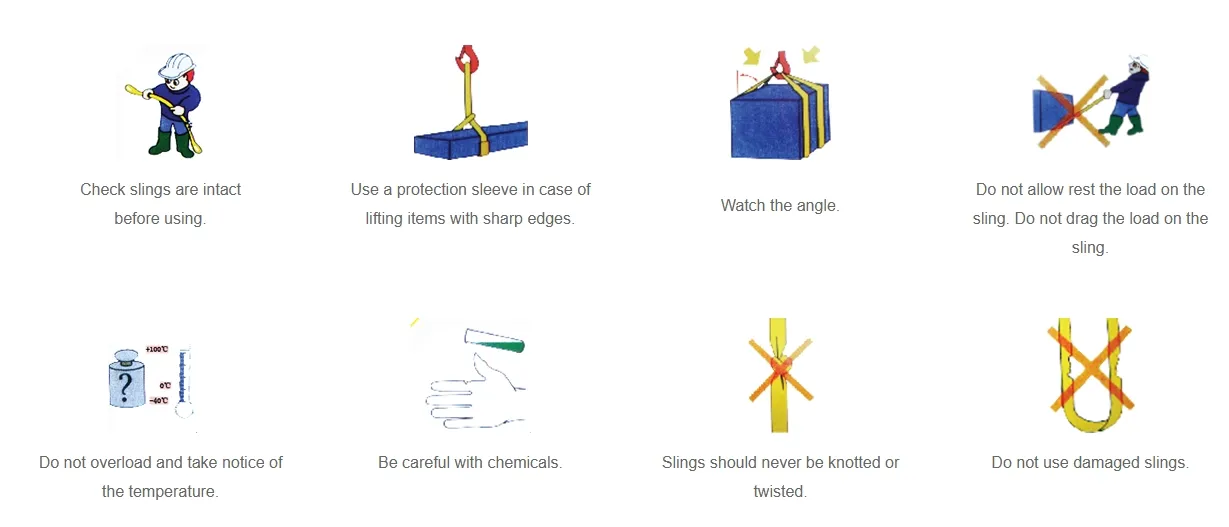

Round Slings Safe Operation Instructions

• Inspection & Sharp Edges: Check slings are intact before using. Use a protection sleeve in case of lifting items with sharp edges.

• Angles & Load Friction: Watch the angle. Do not allow rest the load on the sling. Do not drag the load on the sling.

• Environmental & Chemical Limits: Do not overload and take notice of the temperature. Be careful with chemicals.

• Structural Integrity & Condition: Slings should never be knotted or twisted. Do not use damaged slings.

Applications

Round slings are ideal for lifting, securing, and positioning loads in construction, manufacturing, shipping, and offshore industries. Their endless loop design offers excellent flexibility, even load distribution, and protection for delicate surfaces, making them suitable for machinery, pipes, steel structures, and heavy equipment.

• Infrastructure Construction: Safely positions massive precast steel framing assemblies, structural pipes, and industrial utility concrete molds.

• Logistics & Maritime Shipping: Optimizes heavy crane cargo handling on open vessel decks and international port terminals.

• Offshore Installation Projects: Deployed on subsea energy platforms for balancing machinery segments under severe atmospheric exposure.

Rigging Safety & ASME Operational Guidelines

Cross-reference your mandatory job site safety protocols with diagrams image_5c6766.png before executing heavy crane lifts:

• Pre-Lift Asset Inspections: Site managers must check slings to ensure they are fully intact before initiating any overhead rigging task.

• Edge Protection Barriers: Operators must deploy heavy-duty polyurethane protection sleeves when lifting structural cargo with sharp metallic corners.

• Thermal Boundary Restrictions: Maintain operations strictly below 194 degrees Fahrenheit (90 degrees Celsius) to prevent internal core damage.

• Chemical Contact Mitigation: Avoid chemical hazards by isolating the synthetic polyester webbing from heavy exposure to concentrated alkaline liquids.

• Strict Load Positioning Policies: Never set heavy payloads down directly on top of the soft loop. Dragging slings along concrete is prohibited.

• Structural Geometry Control: Slings should never be knotted or twisted. Immediately destroy and discard any damaged synthetic lifting equipment.

About LDR Rigging

LDR brings over a decade of specialized engineering expertise to the global synthetic lifting industry. As a quality-driven manufacturer, we operate an advanced production facility equipped with 110 premium Swiss weaving systems. Our dedicated textile engineering department develops certified, international-grade high performance round slings capable of managing heavy industrial applications safely.

We enforce rigorous quality metrics by executing 100 percent load proof testing on every single manufacturing lot. Because we serve critical sectors like offshore oil rigging and heavy steel logistics, every component features complete raw material traceability. LDR remains committed to delivering compliant, cost-effective, and fully customized OEM lifting solutions for corporate distribution networks worldwide.

Raw Material Workshop

After the raw materials enter the factory and undergo professional instrument processing and quality inspection, they can enter the next production workshop, and each batch of raw materials can be traced back to their source.

Weaving Work Shop

The Webbing Sling Weaving Machine Is Imported From Switzerland Muller Brand, total 110 Sets Weaving Machines.

Sewing Workshop

The Sewing Machine Are All Using Automatic And Intelligent Computer Sewing Machines, total 100 Set Sewing Machines.
