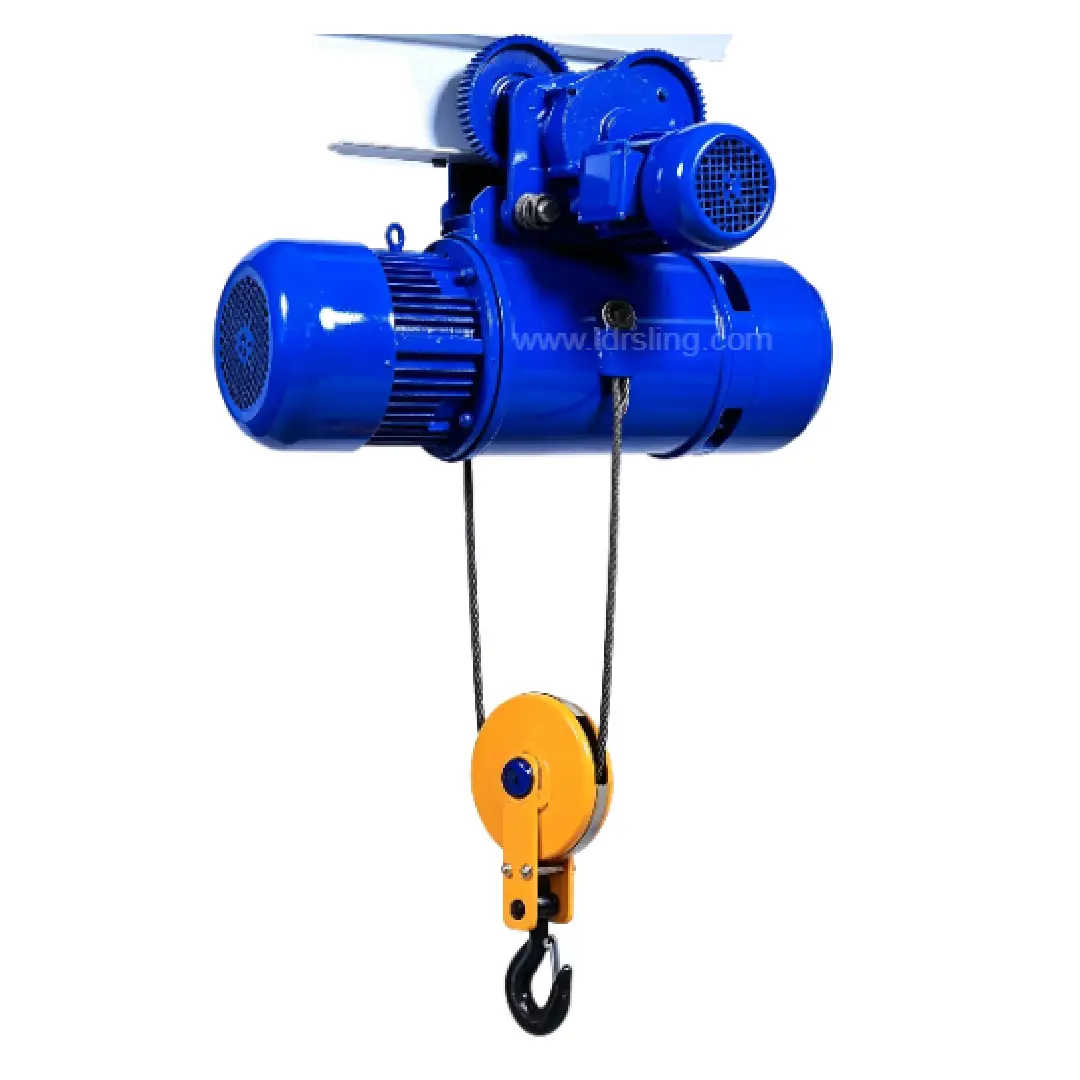

CD1 Electric Wire Rope Hoist

CD1 electric wire rope hoist is single speed industrial lifting hoist for overhead crane and stationary lifting. Available from 0.5 ton to 10 ton, custom lifting height and voltage. Factory direct CD1 wire rope electric hoist with multi safety protection, suitable for workshop and warehouse material lifting. OEM available.

Item Details
Product Name CD1 Electric Wire Rope Hoist
Lifting Capacity 0.5 Ton ~ 10 Ton
Lifting Height 6m,9m,12m,18m,24m,30m (Customizable)
Lifting Speed Single speed
Power Supply 380V 3Ph 50Hz (Custom voltage available)
Control Type Push button pendant control / Wireless remote optional
Working Duty Intermediate working system
Application Factory workshop, warehouse, overhead crane, material lifting
Follow by Email
Facebook
X (Twitter)
LinkedIn
Share
WhatsApp

Product Detail

CD1 Electric Wire Rope Hoist

What is CD1 Wire Rope Electric Hoist?

The CD1 electric wire rope hoist is a classic single-speed industrial wire rope hoist widely used for vertical material lifting in workshops, warehouses, manufacturing plants and construction sites. As one of the most popular types of electric hoist, the CD1 hoist can be installed as stationary lifting equipment or matched with single girder overhead cranes to realize horizontal travelling and cargo hoisting.

Our CD1 wire rope electric hoist adopts robust mechanical structure, reliable braking system and safety limit devices. This industrial lifting hoist delivers stable lifting performance for daily medium-duty lifting jobs. Whether you need a 0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton or 10 ton CD1 electric hoist, we can supply standard and customized lifting solutions.

Key Features of CD1 Electric Wire Rope Hoist

  • Single speed lifting mechanism: Smooth lifting & lowering for precise load handling, ideal for regular workshop lifting tasks
  • Heavy-duty steel wire rope: Wear-resistant, anti-fatigue, ensures long service life for your CD1 wire rope hoist
  • Dual safety limit switches: Upper and lower travel limit protection to prevent overwinding and wire rope damage
  • Reliable electromagnetic brake: Instant braking once power cuts off, avoids load falling, core safety component of the CD1 hoist
  • Optional overload protection: Prevents overloading operation to protect both the electric wire rope hoist and operators
  • Compact body design: Saves indoor space, easy installation and routine maintenance
  • Pendant push button control (optional wireless remote): Convenient operation for your overhead crane hoist system
  • Customizable lifting height: Standard 6m /9m /12m; custom lifting heights supported for special site requirements
  • Flexible power supply: Standard 380V 3 phase 50Hz; custom voltage like 220V, 415V, 440V for different countries

Technical Specifications of CD1 Hoist

Model CD1/CDL1
Lifting capacity(T) 0.5 1 2
Lifting height(M) 6 9 12 6 9 12 18 24 30 6 9 12 18 24 30
Lifting speed, (m/min) 8 8 8
Travelling speed, (m/min) 20 20 20
Rope length(m) 14,43 20,43 26,43 14,7 20,7 26,7 38,7 50,7 62,7 15,4 21,4 27,4 39,4 51,4 63,4
Rope diameter(mm) 4.8 7.4 11
Rope construction D‑6×37+1 D‑6×37+1 D‑6×37+1
I‑beam per GB 706‑65 16‑28b (88‑124mm) 16‑28b (88‑124mm) 20a‑32c (100‑134mm)
Min. turning radius(m) 1 1 1,2 1,8 2,5 3,2 1,2 1,5 2,0 2,8 3,5
Lifting motor Type ZD1 21‑4 ZD1 22‑4 ZD1 31‑4
Power(kw) 0.8 1.5 3
Rotation speed(rpm) 1380 1380 1380
Phases/Frequency
(Hz)		 3/50 3/50 3/50
Voltage(v) 380 380 380
Rated current(A) 2.4 4.3 7.6
Travelling motor Type ZDY111‑4 ZDY111‑4 ZDY112‑4
Power(KW) 0.2 0.2 0.4
Rotation speed, (rpm) 1380 1380 1380
Phases/Frequency, (Hz) 3/50 3/50 3/50
Voltage(V) 380 380 380
Rated current(A) 0.72 0.72 1.25
Operations per hour 120 120 120
Overall dimensions
(mm)		 H 650 667 767 840 950
L2 125 158 187
L1 274 346 418 345 443 541 737 933 1129 352 452 552 752 952 1152
L 616 618 760 758 856 954 1150 1346 1542 820 920 1020 1220 1420 1420
B 884 884 930
L3 318 390 462 401 499 597 793 989 1185 418 518 618 818 1018 1218
L4 190 196 240
D 15 19 25
Weight(kg) 121 125 130 137 145 172 188 204 220 221 232 285 309 332 353

Applications of CD1 Electric Wire Rope Hoist

Our CD1 wire rope electric hoist is versatile industrial lifting equipment for many lifting scenarios:
  • Material handling in manufacturing workshops
  • Cargo loading and unloading in warehouses and logistics yards
  • Equipment installation and machine maintenance
  • Light construction site lifting operations
  • Assembly line component transportation
  • Combined with single girder overhead crane for travelling lifting
Many factory owners and crane installers choose CD1 electric wire rope hoist because of its stable performance, affordable price and easy spare parts replacement. If you are looking for a durable single speed electric hoist for your overhead crane system, CD1 hoist is your cost-effective option.

Hoist Application

Why Buy CD1 Electric Wire Rope Hoist From Us?

We are direct manufacturer of CD1 electric wire rope hoist and overhead crane components.

✅ Factory direct price, no middleman markup for bulk orders

✅ Full inspection before shipment for every CD1 wire rope hoist

✅ 12-month warranty against manufacturing defects

✅ Complete spare parts supply for after-sales maintenance

✅ OEM & ODM service: Custom logo, color, packaging and technical parameters

✅ Professional engineering support for installation guidance and technical consultation

We export CD1 hoist to Southeast Asia, Middle East, Europe and other markets. Contact us if you need technical datasheet, catalog or quotation for industrial wire rope hoist.
