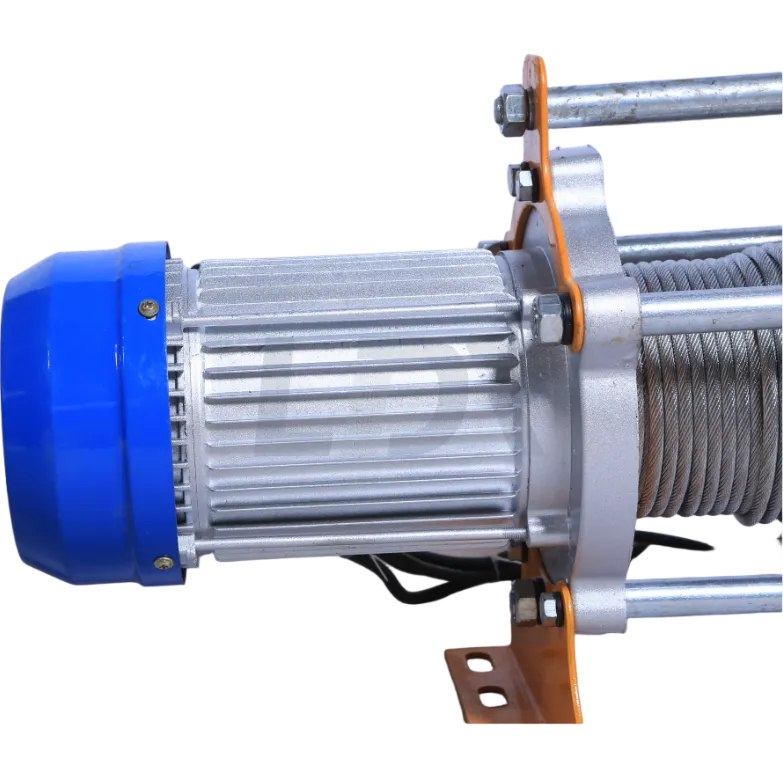

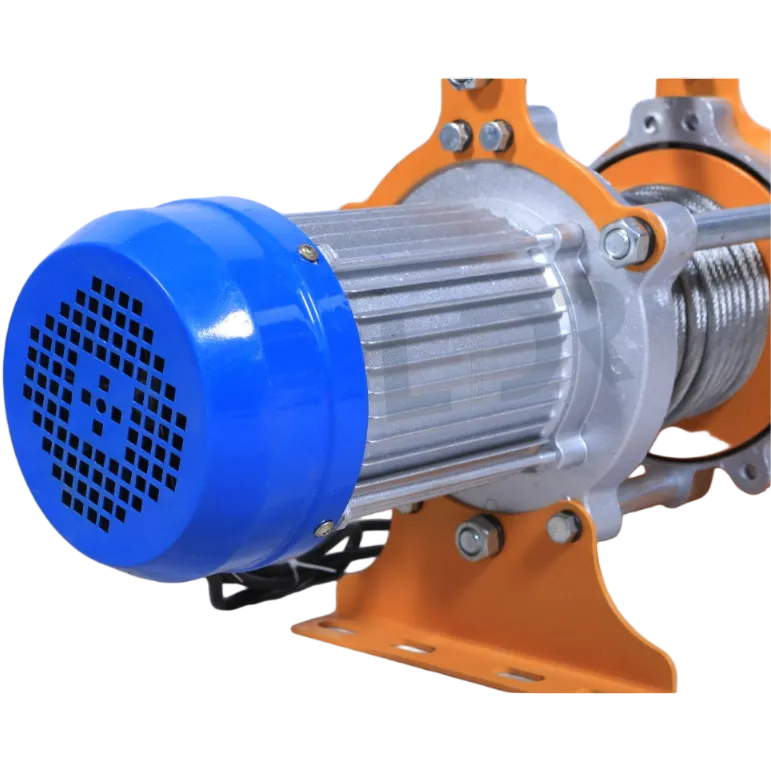

What is an Aluminum Body Vertical Electric Winch?
It is an electric winch where the main structural components are made from aluminum, and it features a vertical drum orientation. This means the drum rotates around a horizontal axis but is mounted between two vertical side plates (often called "cheeks" or "towers").
Key Features and Advantages
1. Aluminum Body (Frame and Side Plates)
-
Corrosion Resistance: This is the primary reason for choosing aluminum. It naturally resists rust, making it perfect for marine environments (boats, docks), chemical plants, food processing facilities, and any area with high humidity or exposure to corrosive substances.
-
Lightweight: Aluminum provides a significant weight saving over steel. This is critical for applications where added weight is a disadvantage, such as on boats, aluminum work platforms, or portable lifting equipment.
-
Strength: Modern aluminum alloys offer an excellent strength-to-weight ratio, ensuring the winch can handle its rated load safely.
2. Vertical Design
-
Compact and Robust Footprint: The vertical design creates a very strong, torsion-resistant structure. The load force is directed through the strong vertical side plates.
-
Standardized Mounting: This is the most common design, meaning mounting patterns are often standardized. It is easy to find compatible mounting kits for vehicles, trailers, and custom structures.
-
Integrated Fairlead Mounting: The vertical side plates provide perfect, strong mounting points for a fairlead (roller or hawse), which is essential for guiding the cable smoothly onto the drum when pulling from an angle.
-
Protection for the Drum: The side plates help protect the drum and the wrapped cable from damage from the sides.

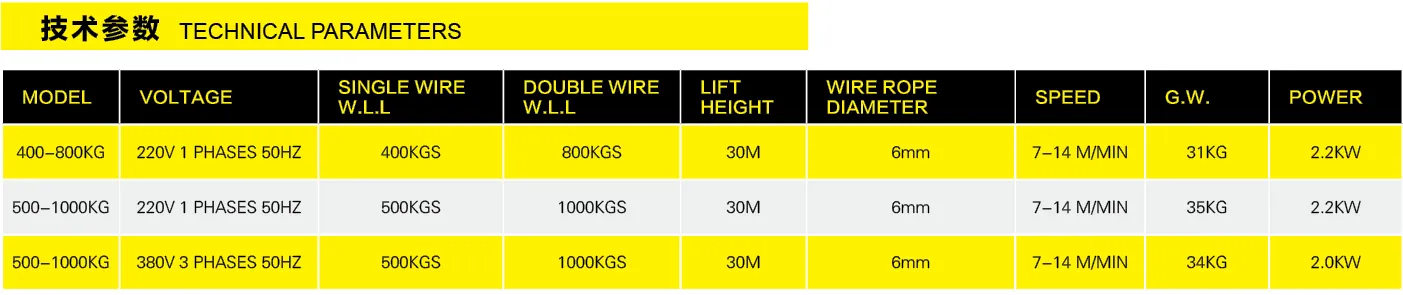

Specification
